Chipset OverClocking Configuration

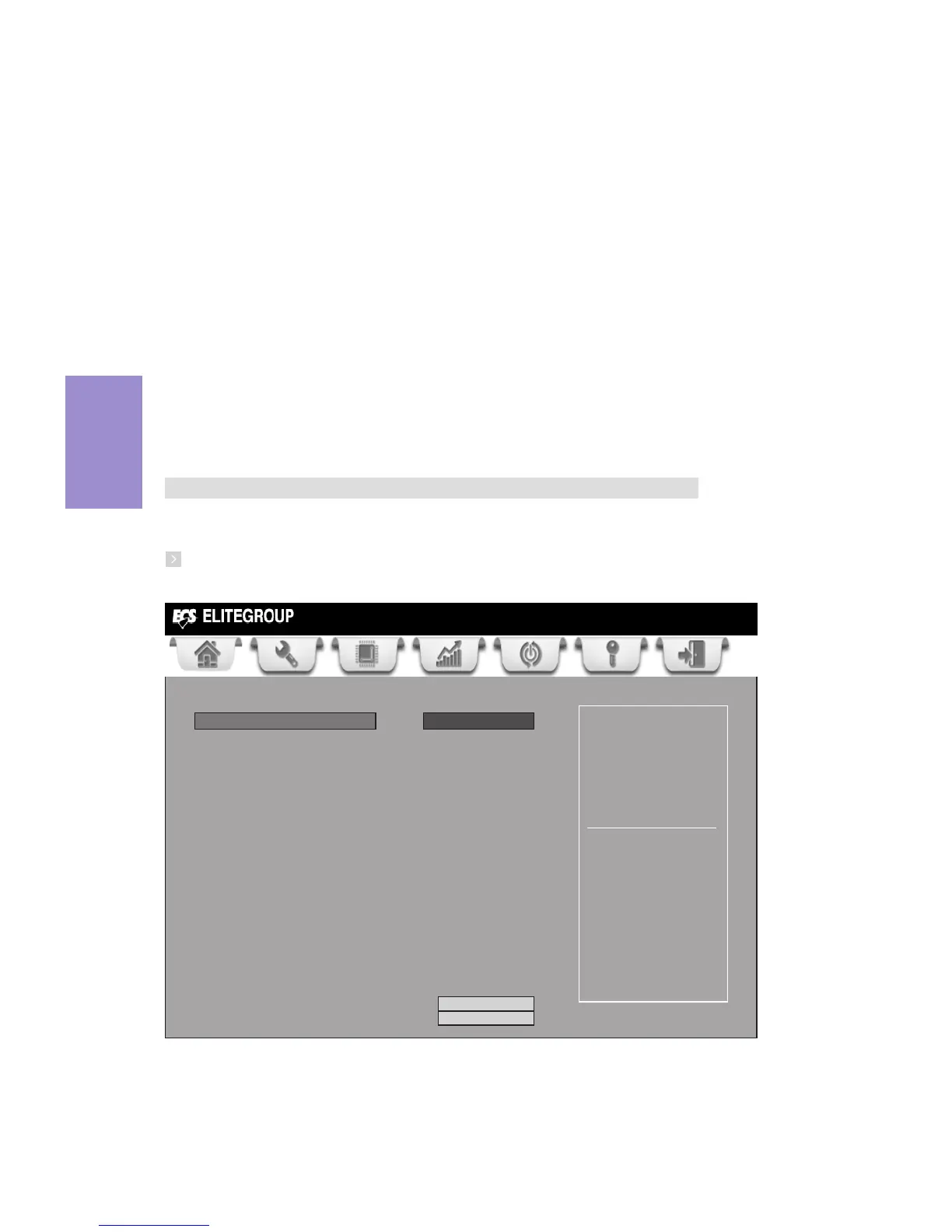

Scroll to this item to view the following screen:
The selection of
Performance Memory
Profiles which impacts
memory sizing behavior.
Main Advanced Chipset M.I.B III Boot Security Exit
Memory Multiplier Configuration
Performance Memory Profiles Automatic
XMP Profile 1 Supported
XMP Profile 2 Not Supported
Memory Timing Configuration
CAS# Latency (tCL) 9
Row Precharge Time (tRP) 9
RAS# to CAS# Delay (tRCD) 9
RAS# Active Time (tRAS) 24
Write Recovery Time (tWR) 10
Row Refresh Cycle Time (tRFC) 74
Write to Read Delay (tWTR) 5
Active to Active Delay (tRRD) 4
Read CAS# Precharge (tRTP) 5
Four Active Window Delay (tFAW) 20
Intel Graphics Configuration
Graphics Core Ratio Limit 21
Graphics Voltage (1/256 V) 0
IA Core Current Max (1/8 Amp) (896)
Use this item to control CPU Current Limit.
iGFX Core Current Max (1/8 Amp) (400)
Use this item to control iGFX Core Current Limit.
Enhanced Intel SpeedStep Technology (Enabled)
This item allows users to enable or disable the EIST (Enhanced Intel SpeedStep Tech-
nology).
Runtime Turbo Enable (Disabled)
This item shows if CPU support Runtime Turbo.
Long Duration Maintained (28)
Use this item to control the time window over PL1 Value should be maintained. This
is for Turbo Mode.
Over Clocking Extra Vol. (1/256 V) (0)
This item allows you to control Extra CPU Voltage.
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
ESC/Right Click: Exit
F4: Save & Exit
Press <Esc> to return to the M.I.B III page.
