CSM parameters

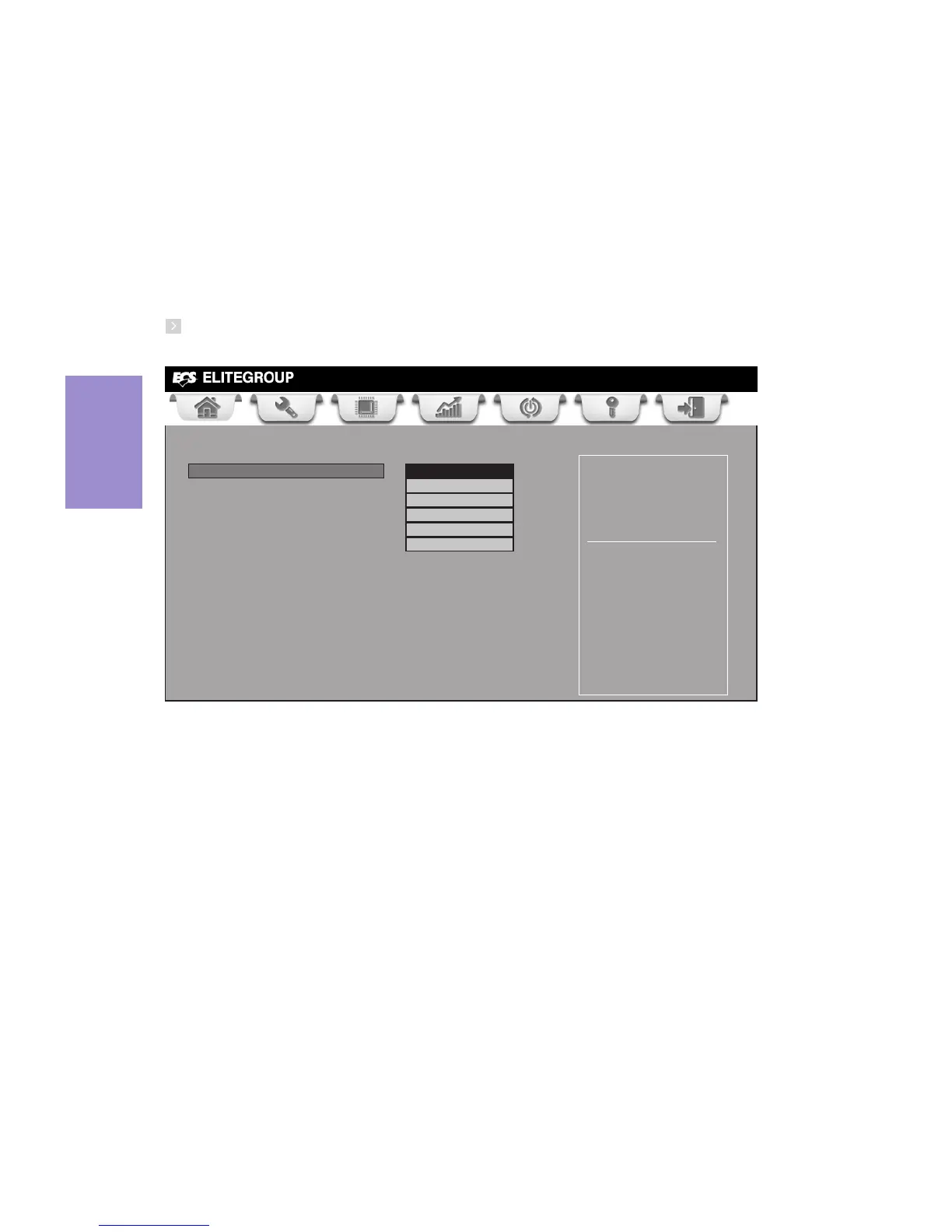

Scroll to this item and press <Enter> to view the following screen.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Launch CSM Always
Boot option filter UEFI and Legacy
Launch PXE OpROM policy Do not launch
Launch Storage OpROM policy Legacy only
Launch Video OpROM policy Legacy only
Other PCI device ROM priority Legacy OpROM
Launch CSM (Always)
This option controls if CSM
will be launched
This option controls if CSM will be launched.
Launch PXE OpROM policy (Do not Launch)
This controls the execution of UEFI and Legacy PXE OpROM.
Launch Storage OpROM policy (Legacy only)
This controls the execution of UEFI and Legacy Storage OpROM.
Launch Video OpROM policy (Legacy only)
This controls the execution of UEFI and Legacy Video OpROM.
Other PCI device ROM priority (Legacy OpROM)
For PCI devices other than Network, Mass storage or Video defines which OpROM to
launch.
Boot option filter (UEFI and Legacy)
This option controls what devices system can boot to.
Hard Disk Drive/ CD/DVD ROM Drive/ USB/IDE Floppy Drive/ USB CD/DVD ROM Drive/
USB HardDisk Drive/ USB Flash Drive/ NETWORK Device Drive Priorities
These items enable you to specify the sequence of loading the operating system.
Press <Enter> to see the submenu.
CSM parameters
OpROM execution, boot options filter,etc.

ECS B75H2-M3 Specifications

General

Internal memory	16 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	4
Power fan connector	Yes
Number of COM connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA
On-board graphics card	No
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
BIOS type	AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	210 mm
Width	244 mm
