Chapter 2
19
B85H3-M3 USER MANUAL

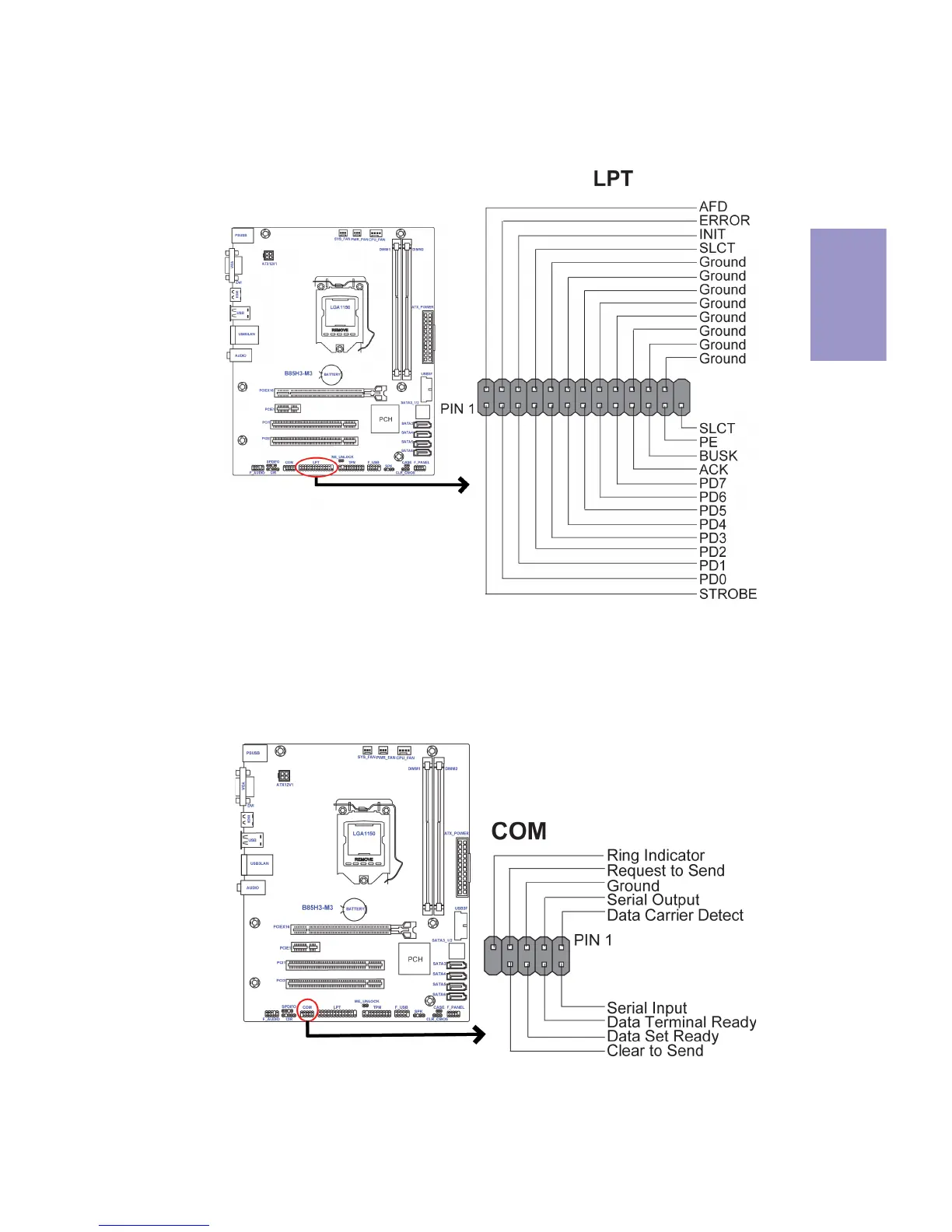

8. COM: Onboard serial port header
Connect a serial port extension bracket to this header to add a serial port to your
system.
7. LPT
: Onboar
d parallel port Header
This is a header that c
an be used to connect t
o the printer
, scanner or other devices.
