Chapter 2
20
B85H3-M3 USER MANUAL

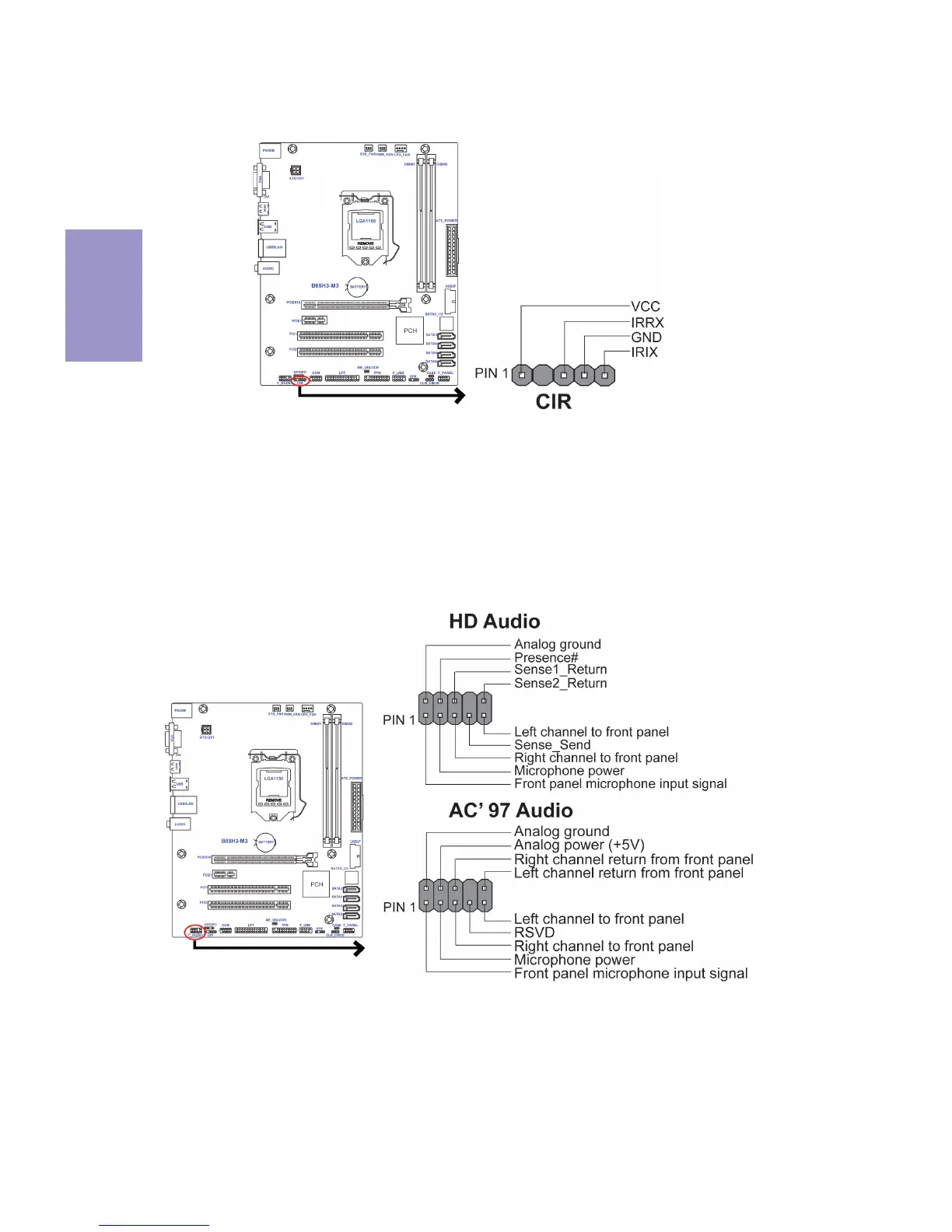

The front panel audio header allows the user to install auxiliary front-oriented mi-
crophone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC
’
97 front panel audio to HD onboard headers,
please set as below picture.
10. F_AUDIO: Front Panel Audio Header
9. CIR: Consumer Infrared Header
23
25
