ECS G41T-M User Manual

19

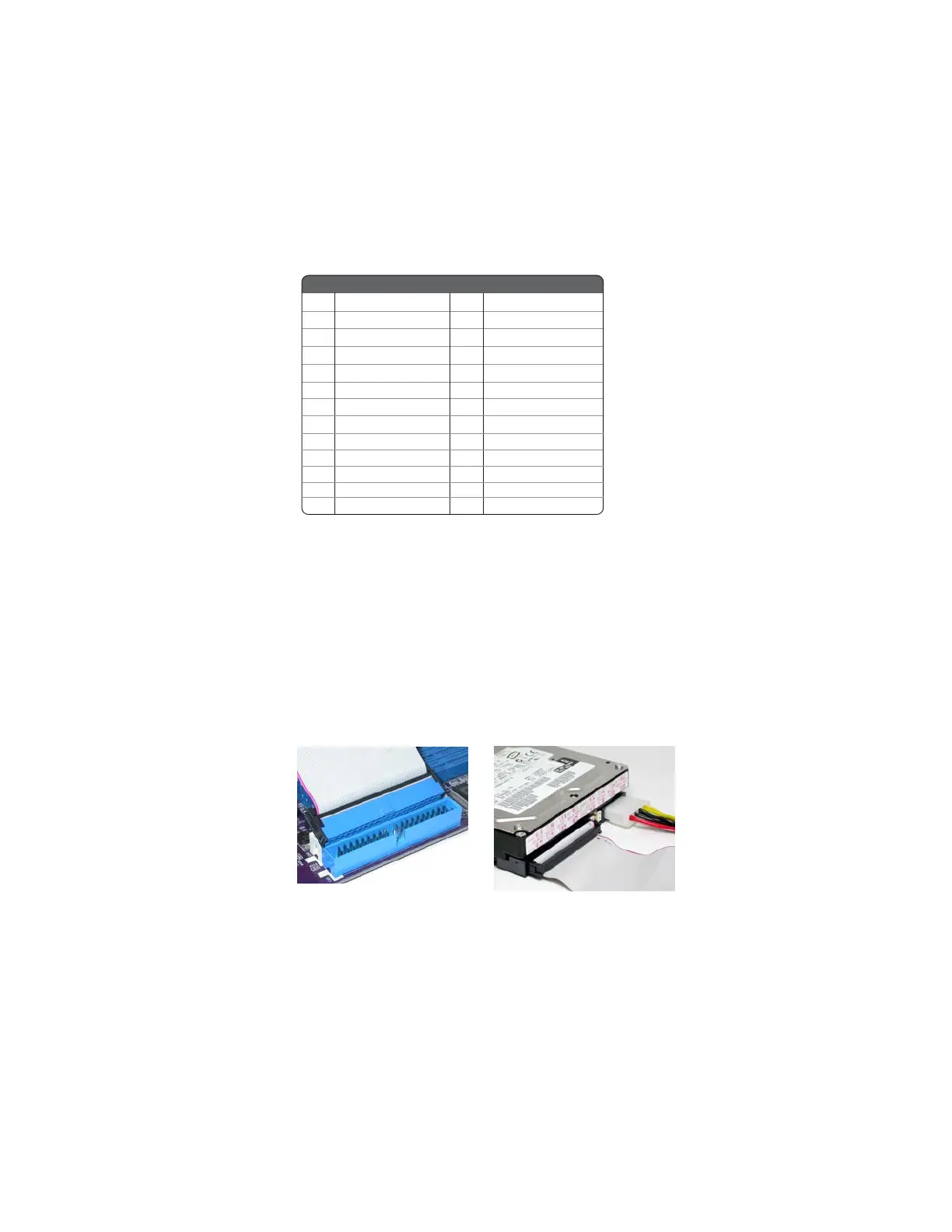

Installing the Motherboard
LPT_H: Onboard parallel port header
This is a header that can be used to connect to the printer, scanner or other devices.
Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive
This section describes how to install IDE devices such as a hard disk drive and a CD-
ROM drive.
About IDE Devices
Your motherboard has one IDE channel interface.
IDE: IDE Connector
This motherboard supports four high data transfer SATA ports with each runs up to
3.0 Gb/s. To get better system performance, we recommend users connect the CD-
ROM to the IDE channel, and set up the hard drives on the SATA ports.
1 STROBE 14 ALF
2 PD0 15 ERROR
3 PD1 16 INIT
4 PD2 17 SLCTIN
5 PD3 18 Ground
6 PD4 19 Ground
7 PD5 20 Ground
Pin Signal Name Pin Signal Name
8 PD6 21 Ground
9 PD7 22 Ground
10 ACK 23 Ground
11 BUSK 24 Ground
12 PE 25 Ground
13 SLCT 26 Key

ECS G41T-M Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Graphics card	GMA X4500
Networking features	Fast Ethernet
ACPI version	1.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	204 mm
Width	244 mm
