ECS G41T-M User Manual

22
Installing the Motherboard
Connecting Case Components

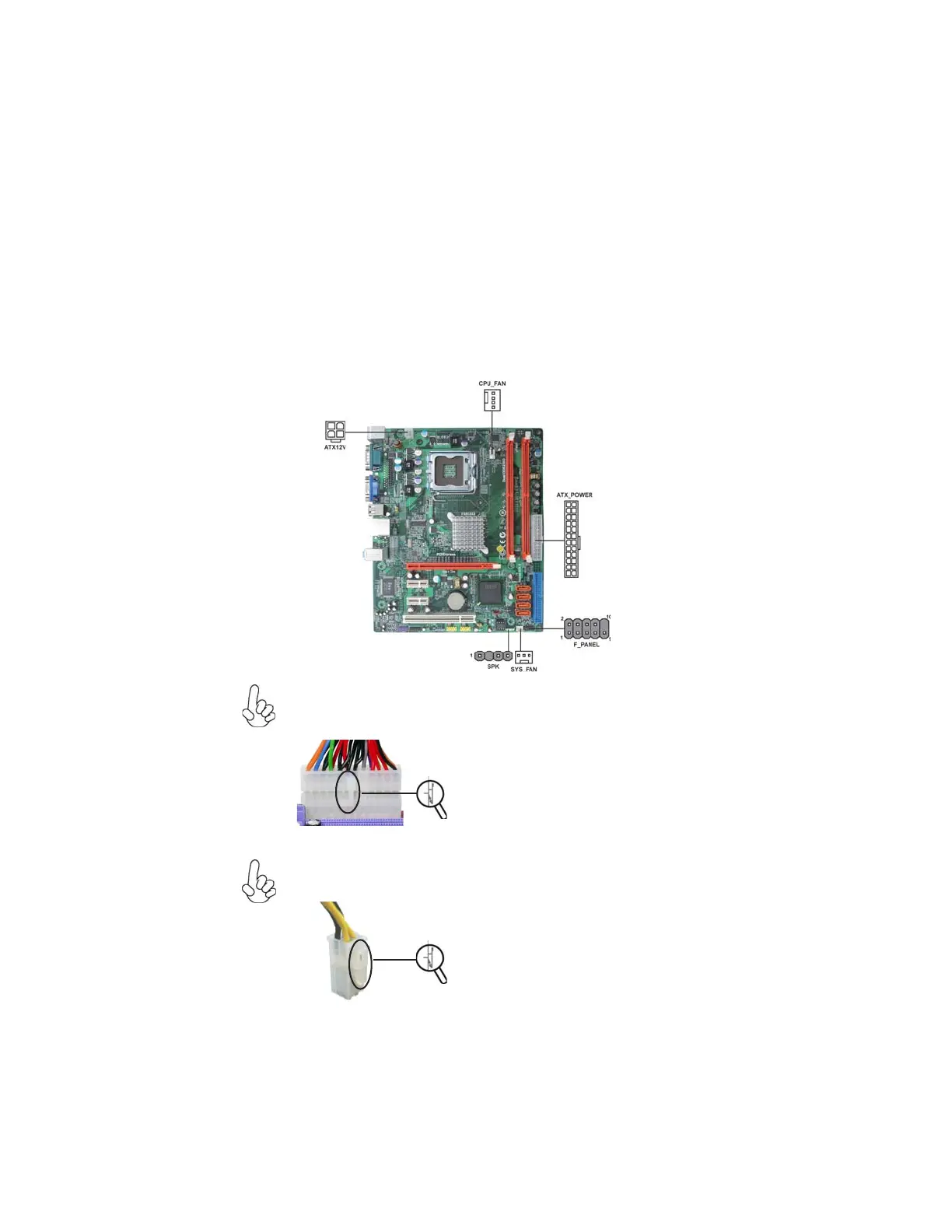

After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the standard power supply connector to ATX_POWER.
3 Connect the case switches and indicator LEDs to the F_PANEL.
4 Connect the system cooling fan connector to SYS_FAN.
5 Connect the case speaker cable to SPK.
6 Connect the auxiliary case power supply connector to ATX12V.
The ATX_POWER 24-pin connector allows you to connect to ATX v2.x
power supply.
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX_POWER match perfectly.
1. Connecting 24-pin power cable
24-pin power cable
The ATX12V power connector is used to provide power to the CPU.
When installing 4-pin power cable, the
latches of power cable and the ATX12V
match perfectly.
2. Connecting 4-pin power cable
4-pin power cable

ECS G41T-M Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Graphics card	GMA X4500
Networking features	Fast Ethernet
ACPI version	1.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	204 mm
Width	244 mm
