ECS H11H4-I User Manual

11
Installing the Motherboard
Checking Jumper Settings

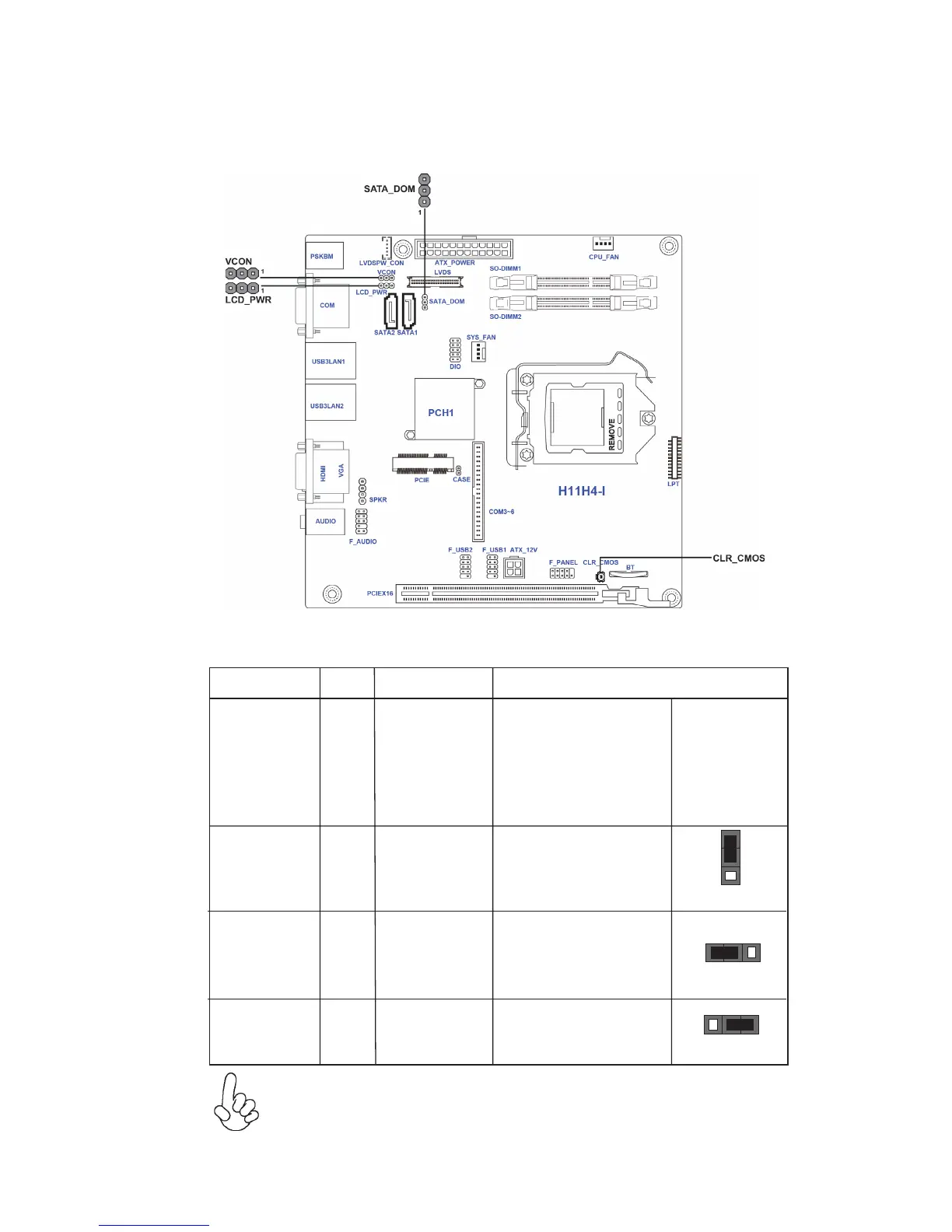

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
Jumper Settings
Jumper
Type
Description Setting (default)
CLR_CMOS
Button
Clear CMOS
Press the button
to clear CMOS
Before clearing the
CMOS, make sure to
turn off the system.
SATA_DOM
SATA_DOM
1-2: VCC
2-3: Ground
3-pin
SATA DOM
To avoid the system instability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Default Settings”
and then “Save and Exit Setup”.
VCON
VCON
1-2: VCC3
2-3: Ground
3-pin
Reserve
1
LCD_PWR
1-2: VCC
2-3: VCC3
3-pin
LCD Power
Selection
LCD_PWR
1
1
