22
Installing the Motherboard
Connecting I/O Devices

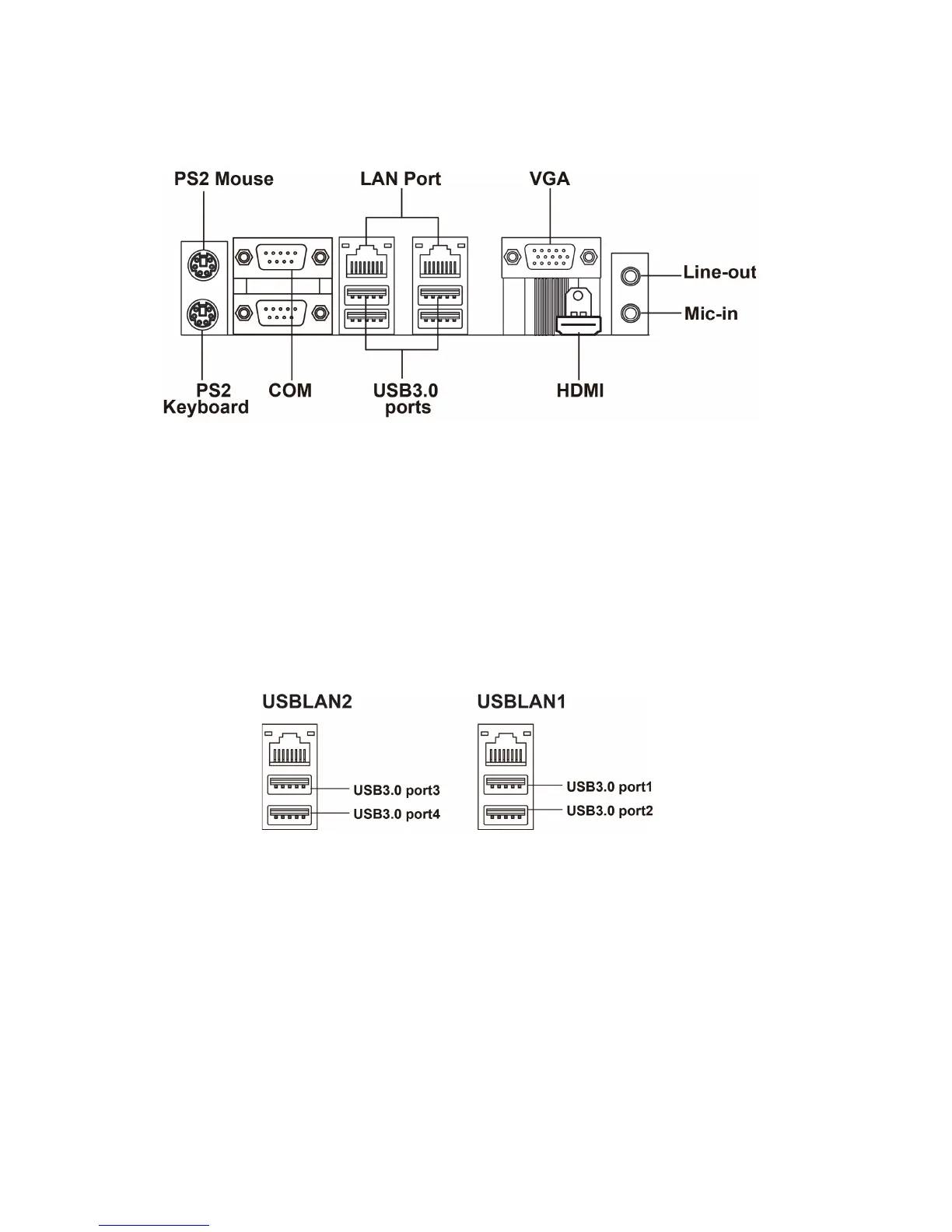

The backplane of the motherboard has the following I/O ports:
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
Audio Ports
Use the two audio ports to connect audio devices. The first
jack is for stereo line-out singal. The second jack is for
stereo Mic-in singal.
Use the USB 3.0 ports to connect USB 3.0 devices.
USB 3.0 Ports
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
You can connect the display devices to the VGA port.
VGA Port
You can connect the display devices to the HDMI port.
HDMI Port
Serial port (COM) Use the COM port to connect the serial devices such as mice
or fax/modems.
