20
Installing the Motherboard
Connecting I/O Devices

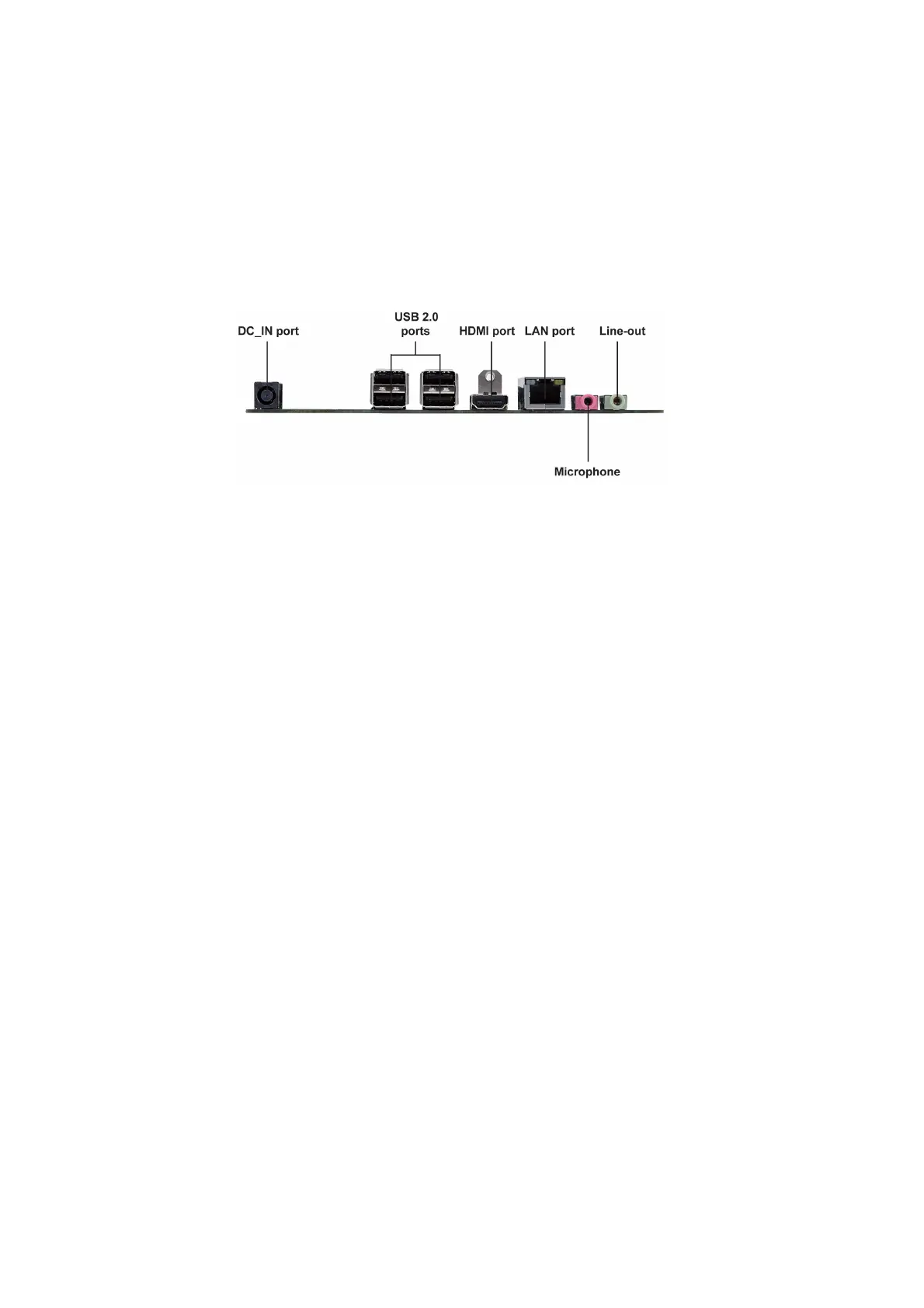

The backplane of the motherboard has the following I/O ports:
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
Audio Ports
Use the two audio ports to connect audio devices. The left
jack is for microphone. The right jack is for stereo line-out
singal.
Connect the HDMI port to the HDMI devices.
Use the USB 2.0 ports to connect USB 2.0 devices.USB 2.0 Ports
HDMI Port
Connect the DC_IN port to the power adapter.
DC_IN Port
To Next Page
