Installing the Motherboard
Connecting Case Components

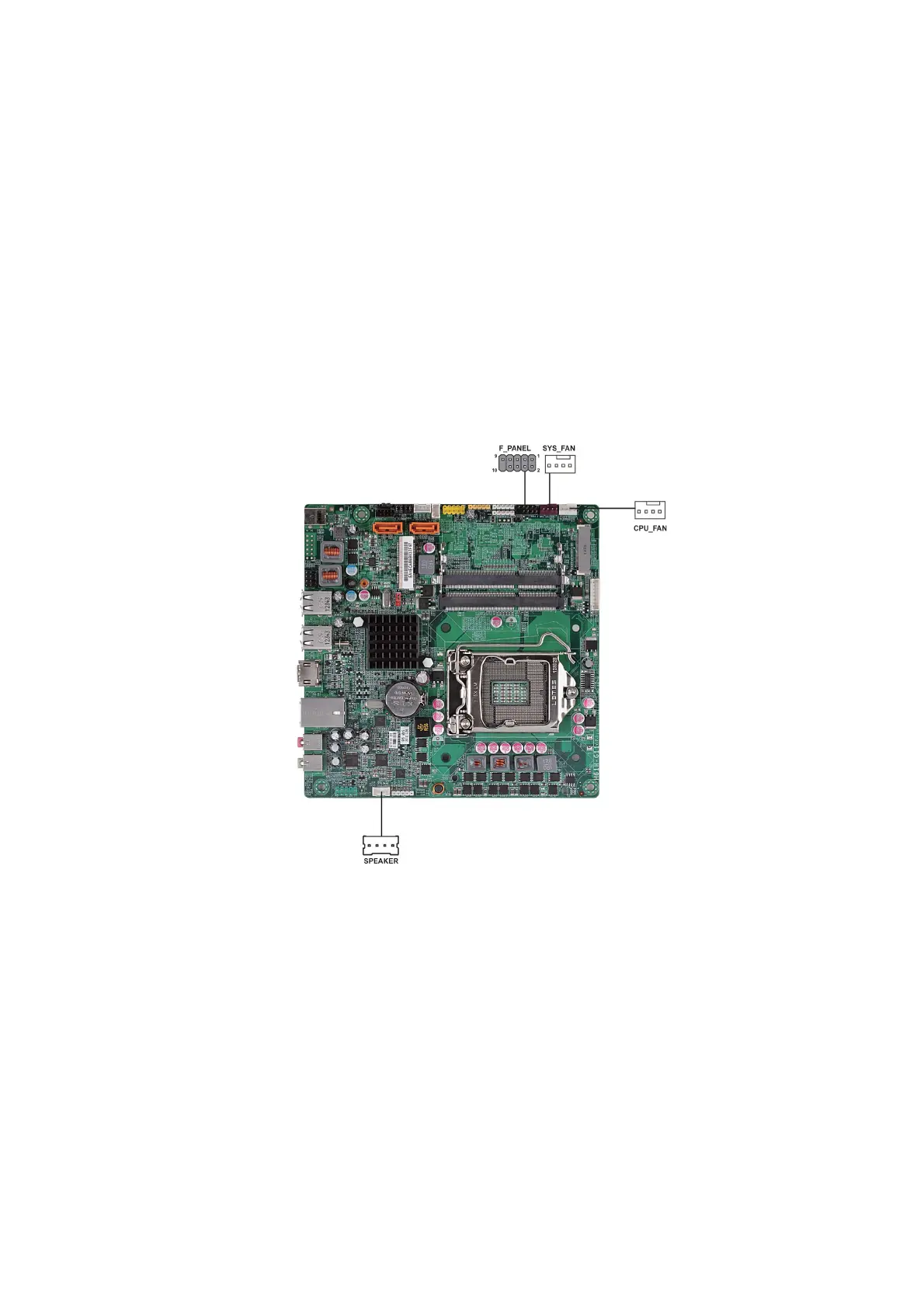

After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the case switches and indicator LEDs to the F_PANEL.
3 Connect the system cooling fan connector to SYS_FAN.
4 Connect the case speaker cable to SPEAKER.
