20
Installing the Motherboard
Connecting I/O Devices

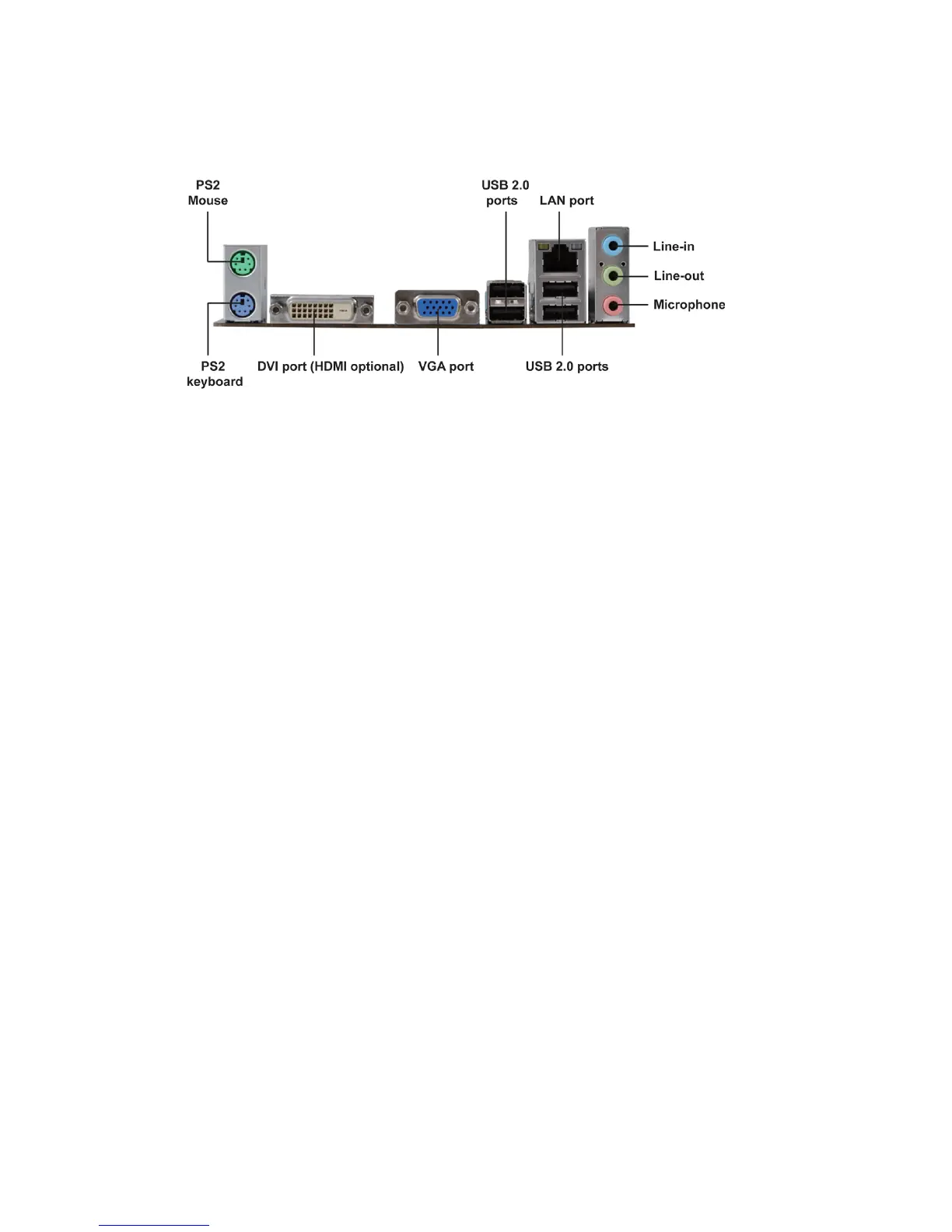

The backplane of the motherboard has the following I/O ports:
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
VGA Port Connect your monitor to the VGA port.
Audio Ports
Use the three audio ports to connect audio devices. The
first jack is for stereo line-in singal. The second jack is for
stereo line-out singal. The third jack is for microphone.
Connect the DVI port to the monitor.
Use the USB 2.0 ports to connect USB 2.0 devices.
USB 2.0 Ports
DVI Port (HDMI
optional)
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
