ECS H61H2-M12 User Manual

9
Installing the Motherboard
Checking Jumper Settings

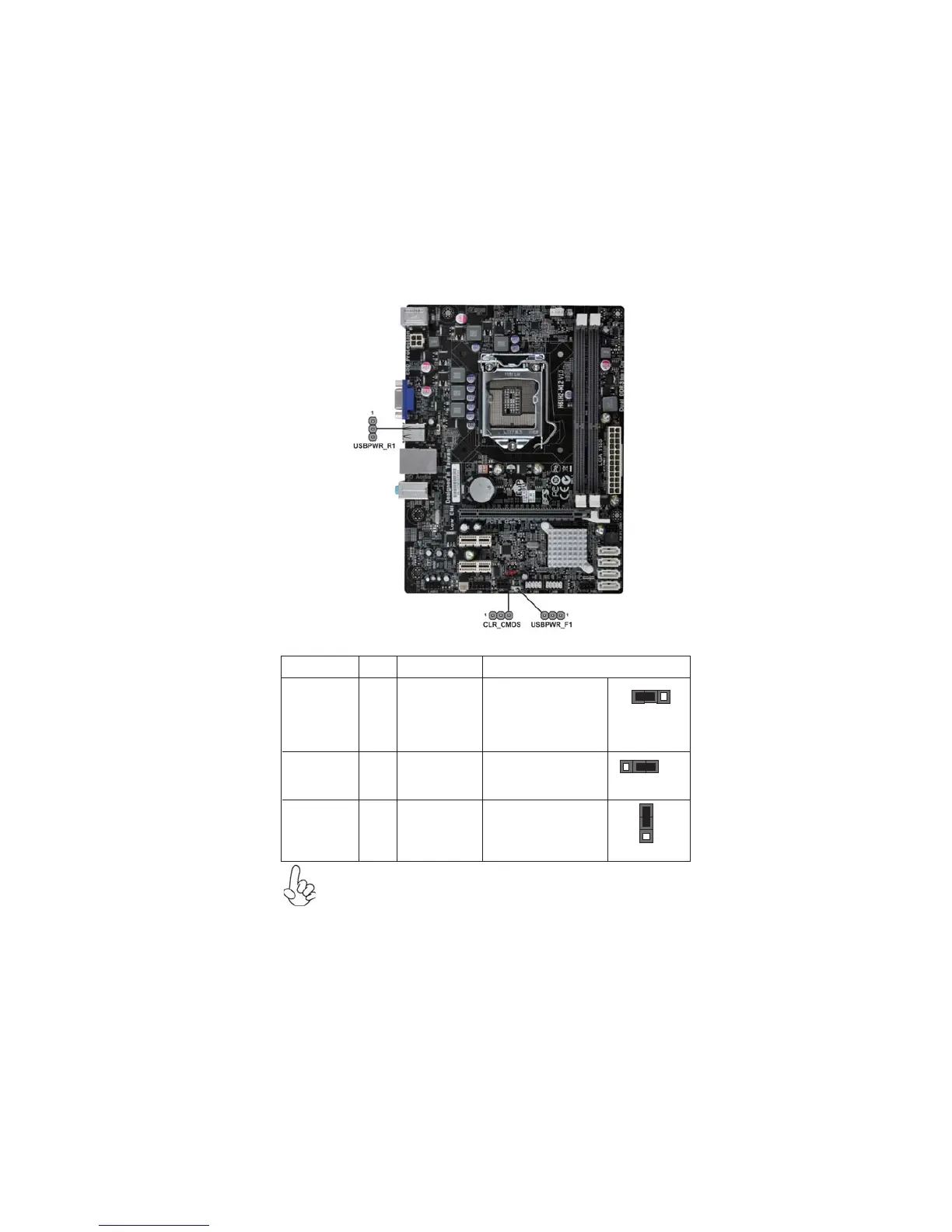

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
Jumper Settings
1.To avoid the system instability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Default Settings”
and then “Save and Exit Setup”.
Jumper
Type
Description Setting (default)
CLR_CMOS
3-pin
Clear CMOS
1-2: NORMAL
Before clearing the
CMOS, make sure to
turn off the system.
Front Panel
USB Power
Select Jumper
USBPWR_F1
Rear USB PS/2
Power Select
Jumper
USBPWR_F1
USBPWR_R1
3-pin
3-pin
USBPWR_R1
1
1
2-3: CLEAR
CLR_CMOS
1
3.It is required that users place the USBPWR_F1 & USBPWR_R1 cap onto
2-3 pin rather than 1-2 pin as default if you want to wake up the computer
by USB/PS2 KB/Mouse.
2.Make sure the power supply provides enough DIMM_5VDUAL voltage
before selecting the DIMM_5VDUAL function.
1-2: VCC
2-3: DIMM_5VDUAL
1-2: VCC
2-3: DIMM_5VDUAL

ECS H61H2-M12 Specifications

General

Memory channels	Dual-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
CPU fan connector	Yes
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
On-board graphics card	-
Parallel processing technology support	Not supported
Networking features	Fast Ethernet
BIOS type	AMI
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	170 mm
Width	225 mm
