H61H2-M16 USER MANUAL
16
SATA1~4 connectors are used to support the Serial ATA 3.0Gb/s device, simpler disk
drive cabling and easier PC assembly. It eliminates limitations of the current Paral-
lel ATA interface. But maintains register compatibility and software compatibility
with Parallel ATA.

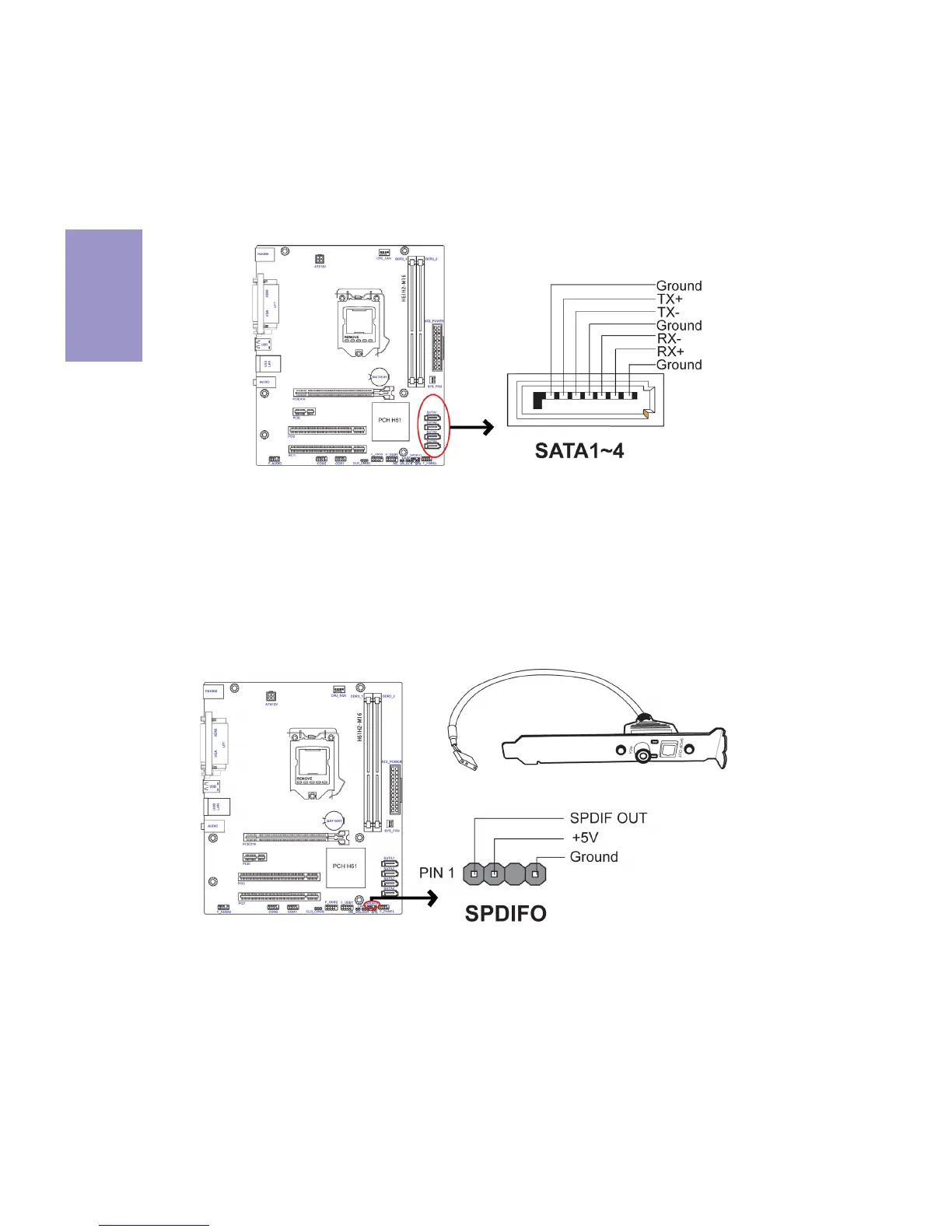

1. SATA1~4: Serial ATA connectors
This is an optional header that provides an SPDIFO (Sony/Philips Digital Interface)
output to digital multimedia device through optical fiber or coaxial connector.
2. SPDIFO: SPDIF out header
