Parallel Port Configuration

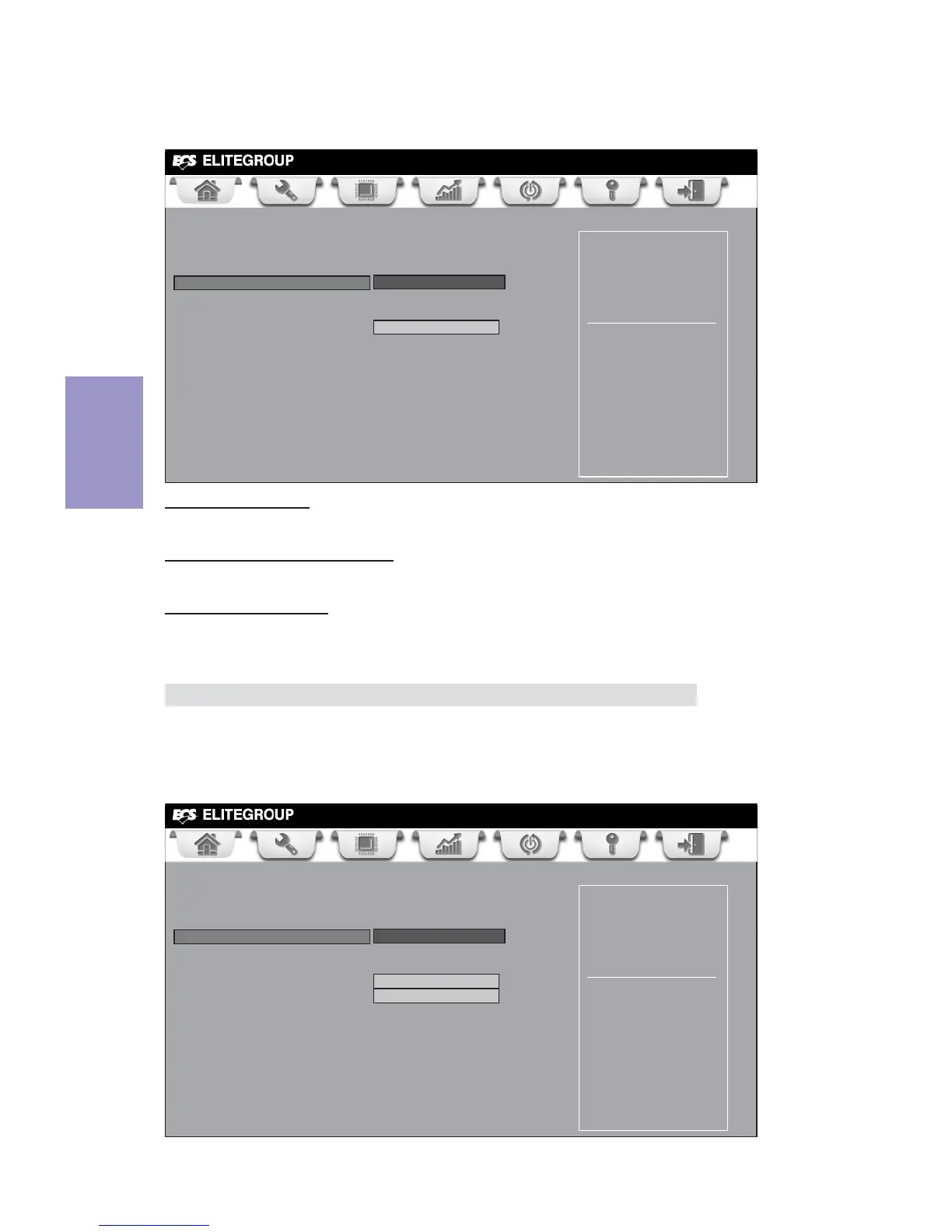

Scroll to this item and press <Enter> to view the following screen:
Serial Port 1 Configuration
Scroll to this item and press <Enter> to view the following screen:
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=2F8h; IRQ=3)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Press <Esc> to return to the Super IO Configuration page.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enabled or Diabled Serial
Port (COM)
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Serial Port 1 Configuration
Serial Port Enabled
Device Settings IO=2F8h; IRQ=3;
Change Settings Auto
Enabled or Diabled Serial
Port (COM)
Parallel Port Configuration
Parallel Port Enabled
Device Settings IO=378h; IRQ=5;
Change Settings Auto
Device Mode Standard Parallel...
