ECS H61H2-M4 User Manual

Chapter 2
21
H61H2-M4 USER MANUAL

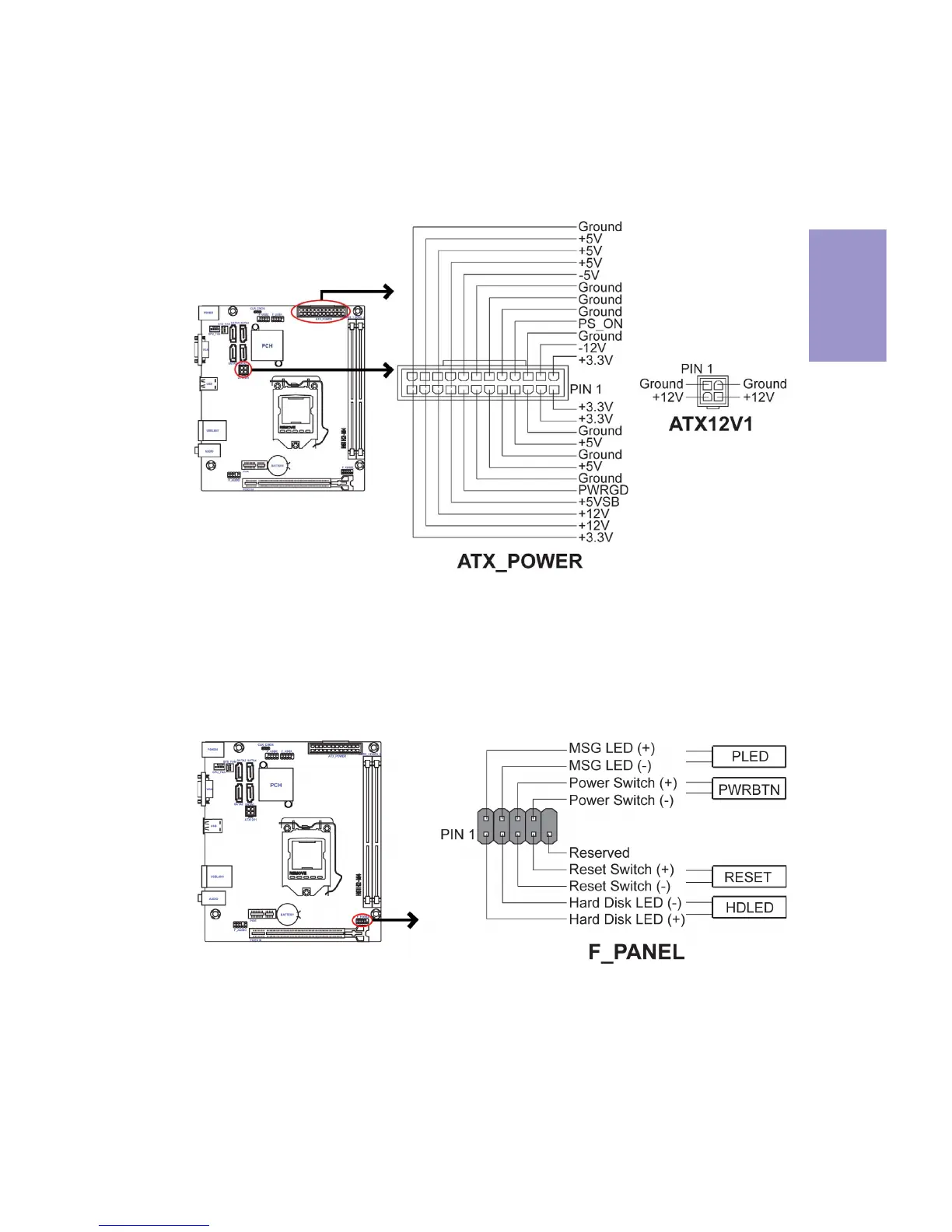

1 & 3. ATX_POWER (ATX 24-pin Power Connector) & ATX12V1 (ATX 12V
Power Connector)
Connect the standard power supply connector to ATX_POWER.
Connect the auxiliary case power supply connector to ATX12V1.
2. F_PANEL: Front Panel Header
The front panel header (F_PANEL) provides a standard set of switch and LED headers
commonly found on ATX or Micro ATX cases. Refer to the table below for information:
