ECS H67H2-1 User Manual

15
Installing the Motherboard
Connecting Optional Devices

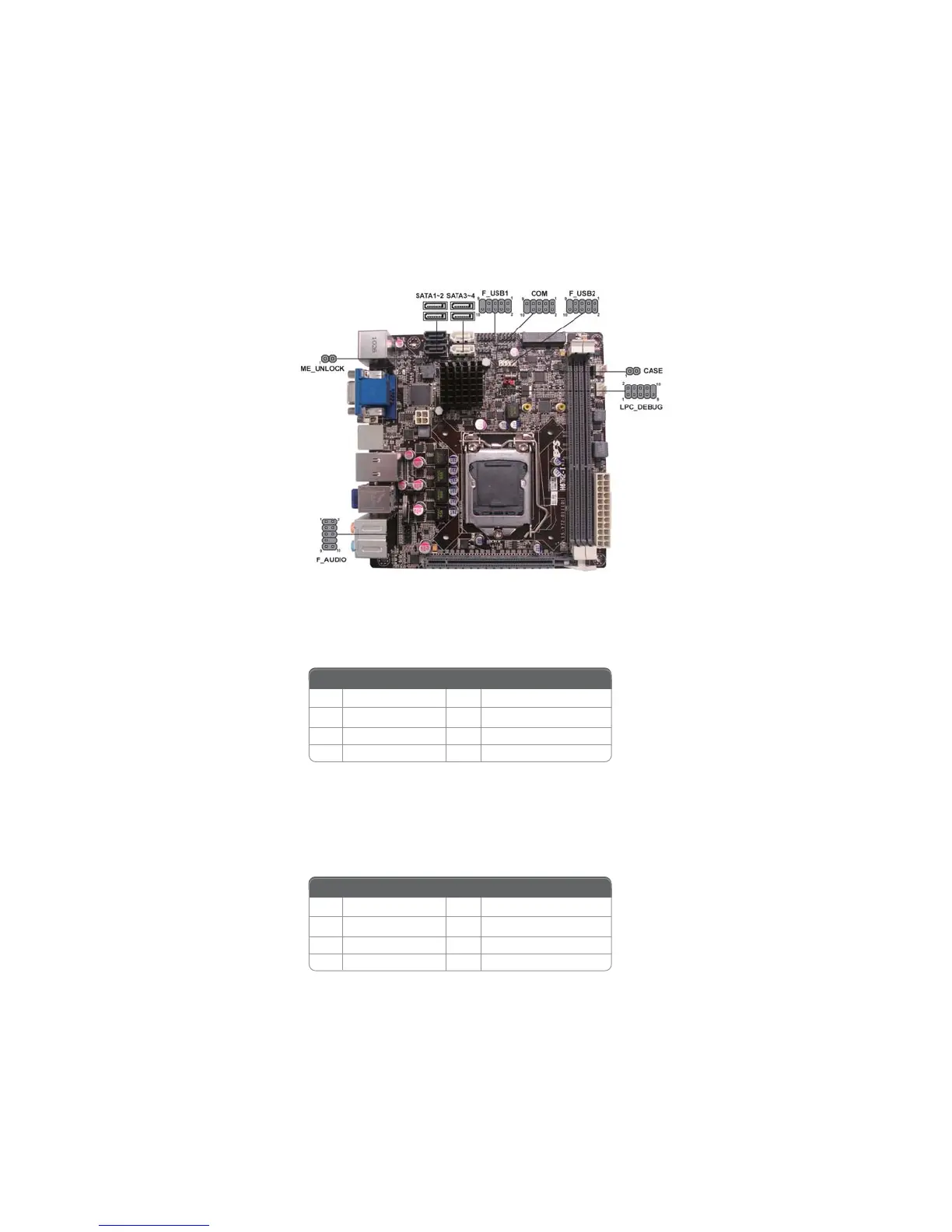

Refer to the following for information on connecting the motherboard’s optional
devices:
SATA1~2: Serial ATAIII connectors
These connectors are used to support the new Serial ATAIII devices for the highest
data transfer rates (6.0 Gb/s), simpler disk drive cabling and easier PC assembly. It
doubles the transfer rate of current SATA 3.0Gb/s interface.
SATA3~4: Serial ATAII connectors
These connectors are used to support the new Serial ATAII devices for the highest
data transfer rates (3.0Gb/s), simpler disk drive cabling and easier PC assembly. It
eliminates limitations of the current Parallel ATA interface. But maintains register
compatibility and software compatibility with Parallel ATA.
1 Ground 2 TX+
3 TX- 4 Ground
5 RX- 6 RX+
7 Ground - -
Pin Signal NamePin Signal Name
1 Ground 2 TX+
3 TX- 4 Ground
5 RX- 6 RX+
7 Ground - -
Pin Signal NamePin Signal Name
