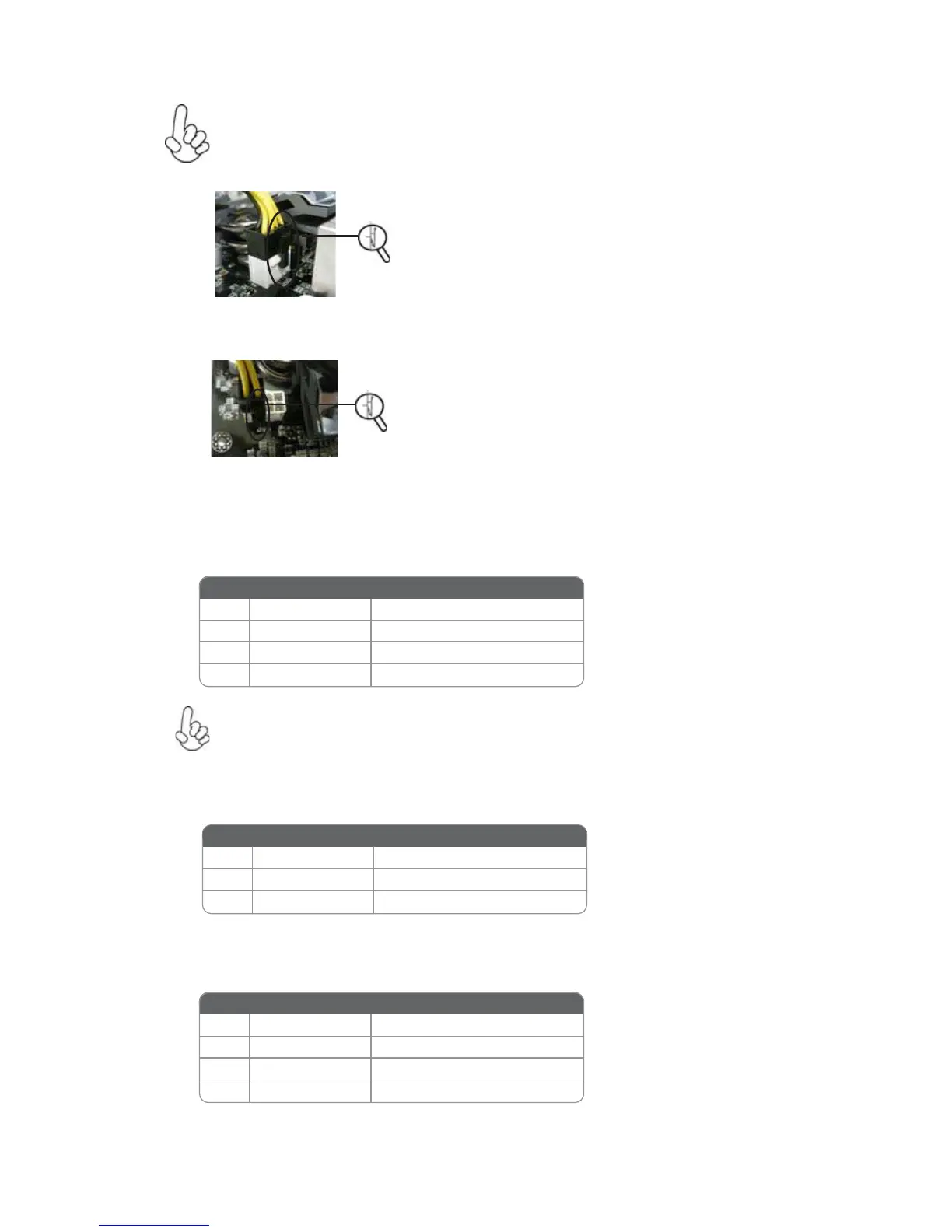

ECS H67H2-M v 1.1 User Manual

24
Installing the Motherboard
Users please note that the fan connector supports the CPU cooling fan of
1.1A ~ 2.2A (26.4W max) at +12V.
CPU_FAN: CPU cooling FAN Power Connector
1 GND System Ground
3 Sense Sensor
4 PWM PWM
Pin Signal Name Function
2 +12V Power +12V
PWR_FAN: Cooling FAN Power Connector
1 GND System Ground
3 Sense Sensor
Pin Signal Name Function
2 +12V Power +12V
Users please note that the 8-pin and 4-pin power cables can both be con-
nected to the ATX12V connector.
Connecting 8/4-pin power cable
SYS_FAN: System cooling FAN Power Connector
1 GND System Ground
3 Sense Sensor
4 PWM PWM
Pin Signal Name Function
2 +12V Power +12V
When installing 4-pin power cable, the latch
falls on the left side of the ATX12V connec-
tor.
4-pin power cable
When installing 8-pin power cable, the latches
of power cable and the ATX12V connector
match perfectly.
8-pin power cable
