ECS H77H2-M User Manual

Chapter 2
24
H77H2-M USER MANUAL

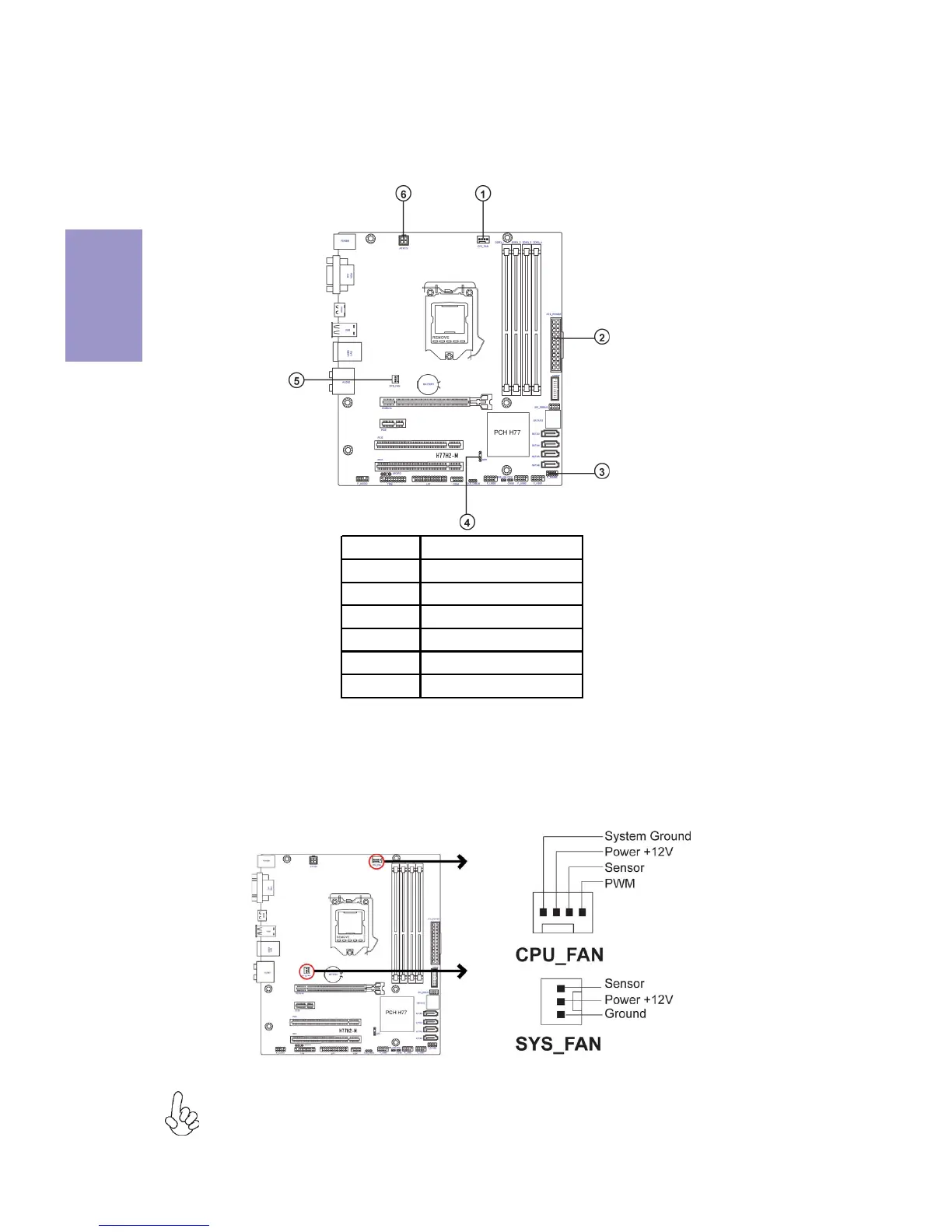

1 & 5. CPU_FAN (CPU cooling FAN Power Connector) & SYS_FAN (System Cool-
ing FAN Power Connector)
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
Connect the CPU cooling fan cable to CPU_FAN.
Connect the system cooling fan connector to SYS_FAN.
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
2-4-7. Connecting Case Components
No. Components
1CPU_FAN
2ATX_POWER
3F_PANEL
4SPK
5SYS_FAN
6 ATX_12V
