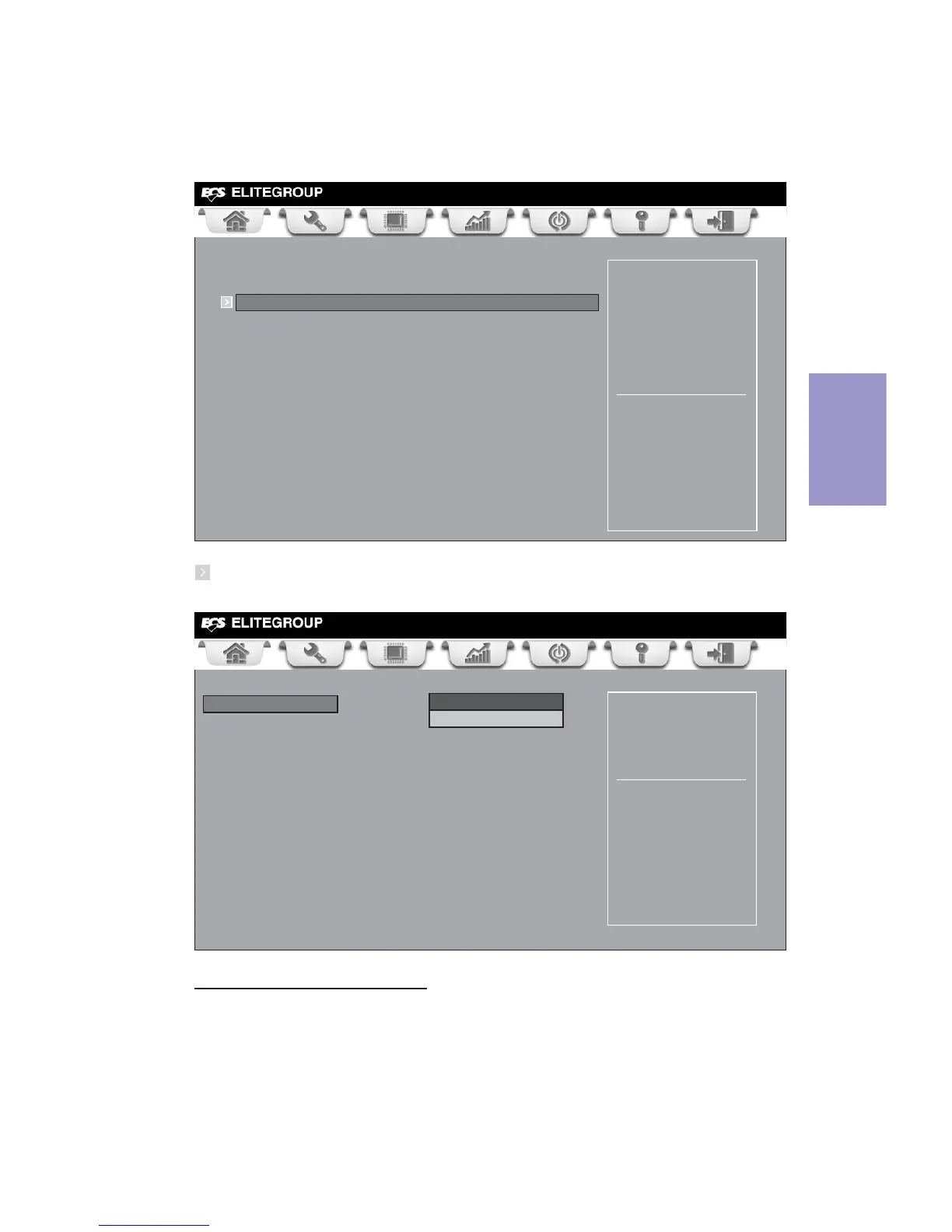

PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Scroll to this item and press <Enter> to view the following screen:
Smart Fan Function
Main Advanced Chipset M.I.B III Boot Security Save & Exit
+/- : Change Opt.
Enter/Dbl Click : Select

: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Fan Speed : 3409 RPM
CPU Voltage : 0.888V
DIMM Voltage : 1.512V
SB Vcore : 1.056V
VTT Voltage : 0.996V
AXG Voltage : 0.012V
-=- PECI Mode -=-
Offset to TCC Activation Temp. : -76
Smart Fan Function
PC Health Status
CPU Smart Fan Control (Enabled)
This item enables you to define the CPU by smartly adjusting the CPU Fan. When it
is set at certain temperature, the CPU Fan PWM value will change accordingly.

Enable CPU Smart Fan
Main Advanced Chipset M.I.B III Boot Security Save & Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Smart Fan Control Enabled
Smart Fan Mode Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP(-) 30
Delta T +3
Smart Fan Slope PWM value 10 PWM value/unite
CPU Fan Full Speed Offset (-) 23
