64
H77H2-M USER MANUAL
Chapter 5
2
.

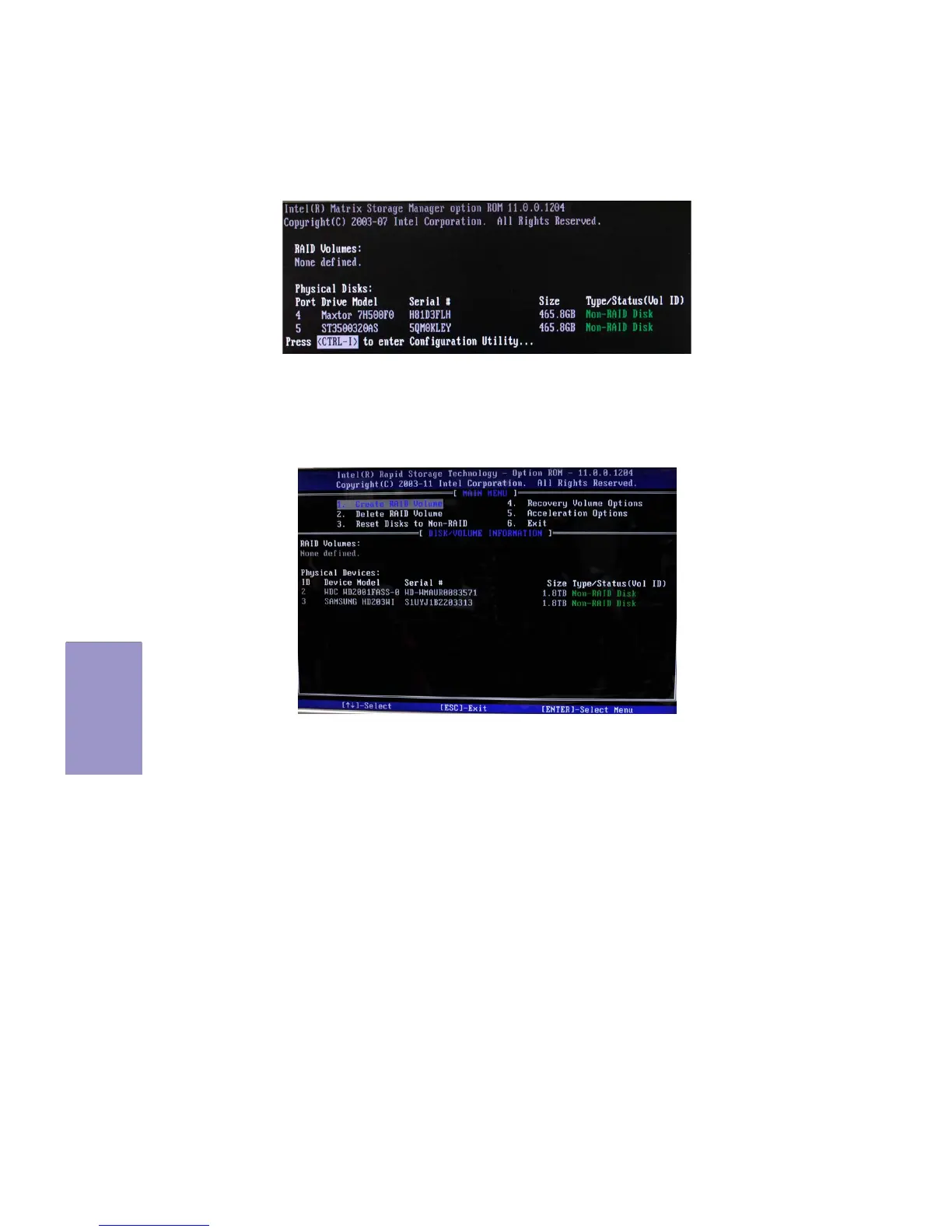

The main Intel
®
Matrix Storage Manager RAID BIOS menu appears.
Entering Intel
®
®
®
®
®
Matrix Storage Manager RAID BIOS utility
1
.
During POST
, press <Ctrl-I> t
o enter the Int
el
®
Matrix Storage Manag
er RAID
BIOS menu.
3
.
Use the arrow keys to move the color bar and navigate through the items.
67
69
