12
Installing the Motherboard

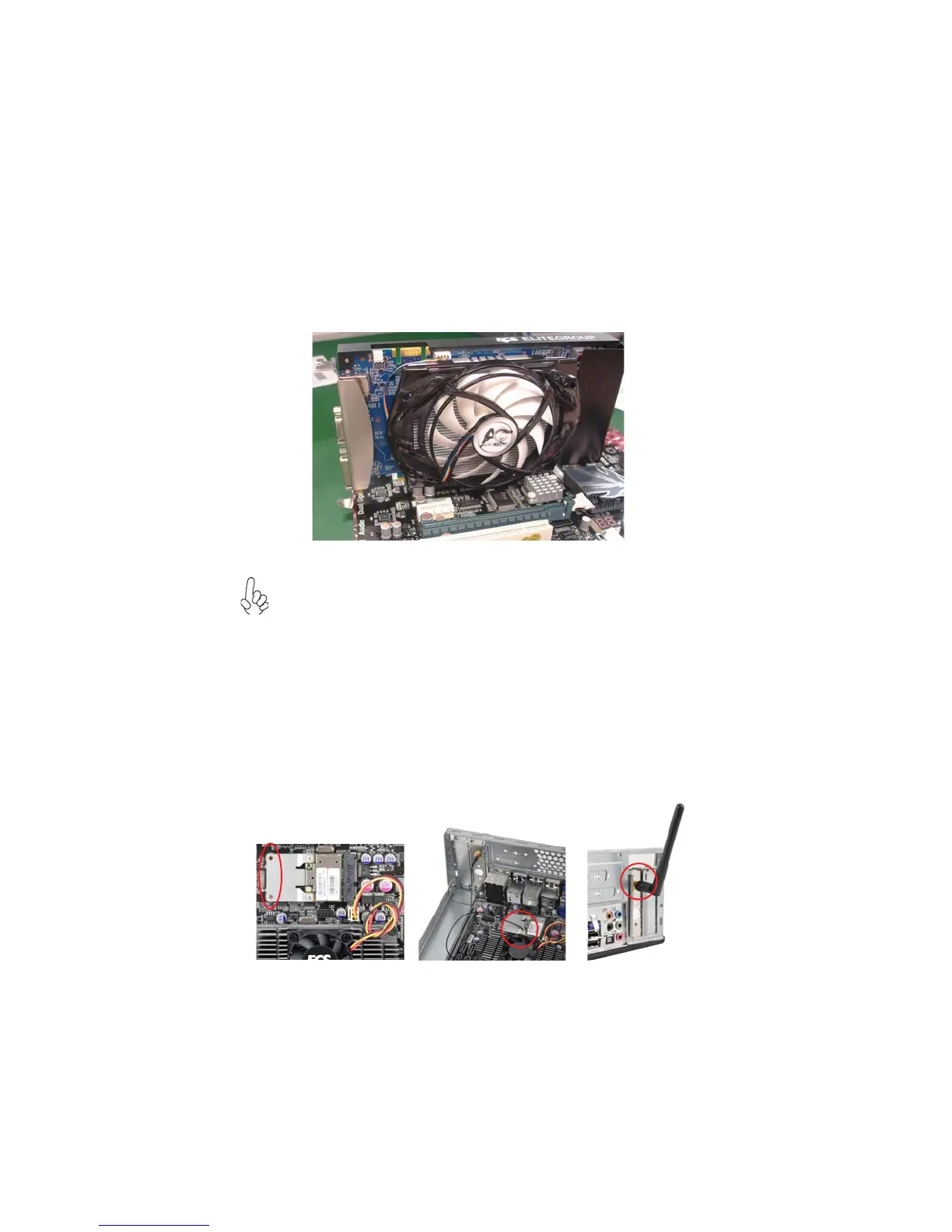

Follow these instructions to install an add-on card:
1 Remove a blanking plate from the system case corresponding to the
slot you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
For some add-on cards, for example graphics adapters and network adapt-
ers, you have to install drivers and software before you can begin using the
add-on card.
* For reference only
Follow these instructions to install a wireless card:
1 Remove a blanking plate from the system case, and insert the wireless
card into the MINIPCIE slot rightwards, then tighten the two screws
(Please refer to Picture 1).
2 Press the metal connector of the cable into the connector on the wire-
less card. Ensure that the metal connector is correctly seated (Please
refer to Picture 2).
3 Make the other end of the cable (with a gold screw) through the upper
hole of the bracket, and tighten the antenna on to the gold screw after
installing a metal gasket on the screw (Please refer to Picture 3).
Picture 1 Picture 2 Picture 3
