Introducing the Motherboard

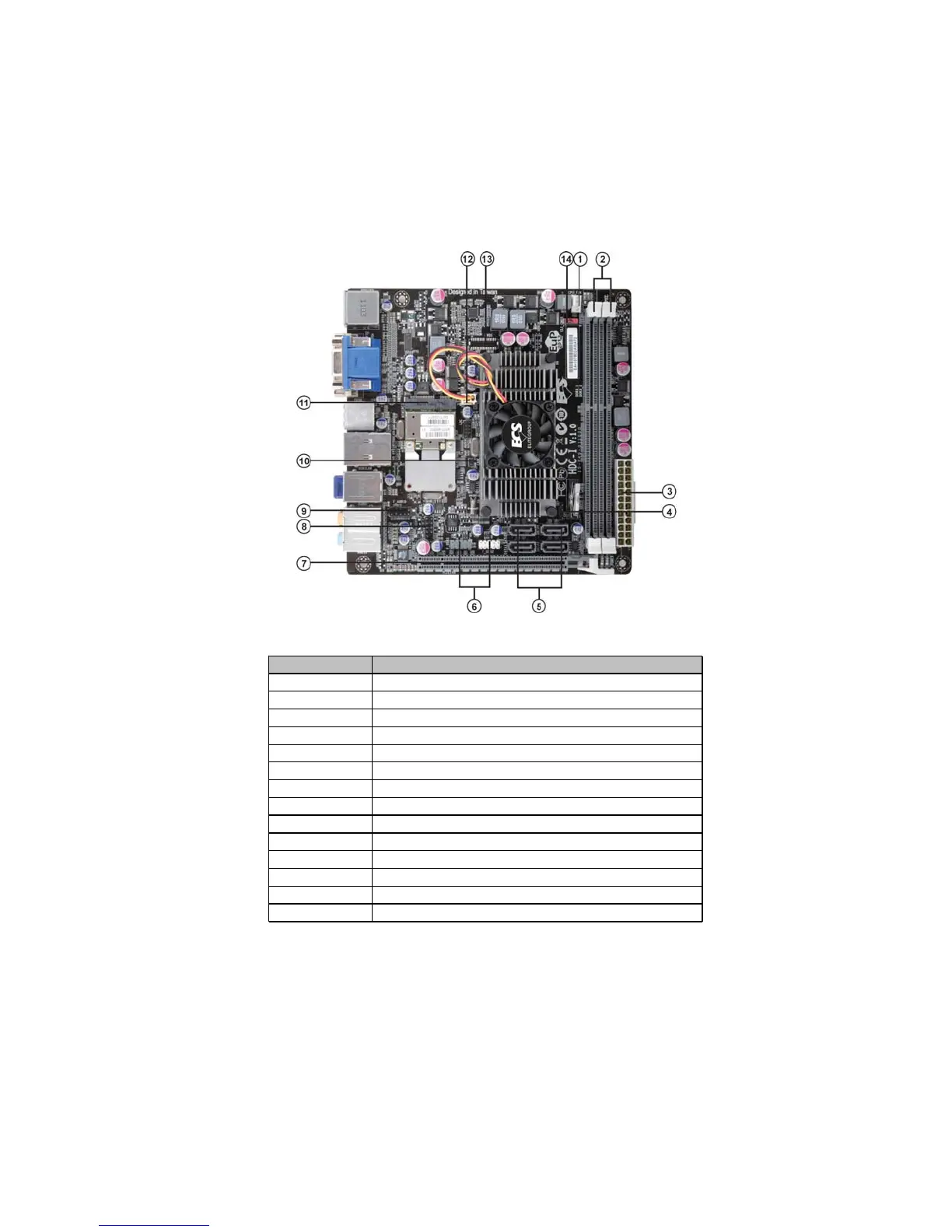

Motherboard Components
Table of Motherboard Components
This concludes Chapter 1. The next chapter explains how to install the motherboard.
LABEL COMPONENTS
1. CPU_FAN CPU cooling fan connector
2. DDR3_1~2 240-pin DDR3 SDRAM slots
3. ATX_POWER Standard 24-pin ATX power connector
4. SPK External speaker header
5. SATA1~4 Serial ATA 6.0 Gb/s connectors
6. F_USB1~2 Front panel USB 2.0 header (F_USB1 supports EZ charger)
7. PCIE16X PCI Express x16 slot (running at x4 mode)
8. F_PANEL Front panel switch/LED header
9. F_AUDIO Front panel audio header
10. CASE CASE open header
11. MINIPCIE Mini PCI Express x1 slot (with optional wireless card)
12. SYS_FAN System cooling fan connector
13. LVDS LVDS header (Optional)
14. CLR_CMOS Clear CMOS jumper
