ECS K7S5A Pro - Page 14

SPK1: Internal speaker header
Pin Signal Name
1 SPKR
2 NC
3 Ground
4 +5V

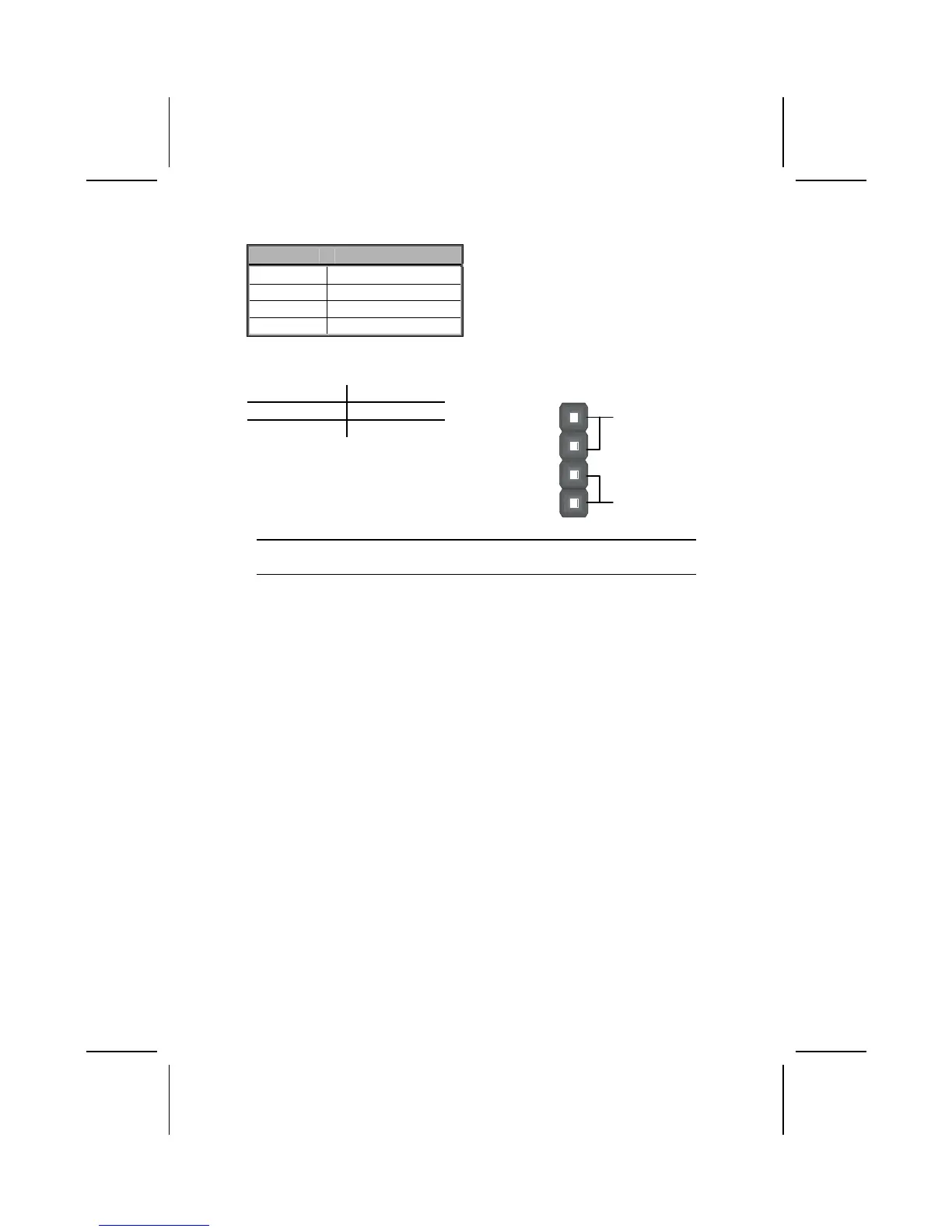

JP2: LAN LED Indicator
This connector is attached to LAN device that needs a LED indicator.
Device Pins
Link LED 1, +2
ACT LED +3, 4
LINK LED
ACT LED
1
+
+
4
Note: The plus sign (+) indicates a pin which must be connected to a positive
voltage.
10
