Checking Jumper Settings

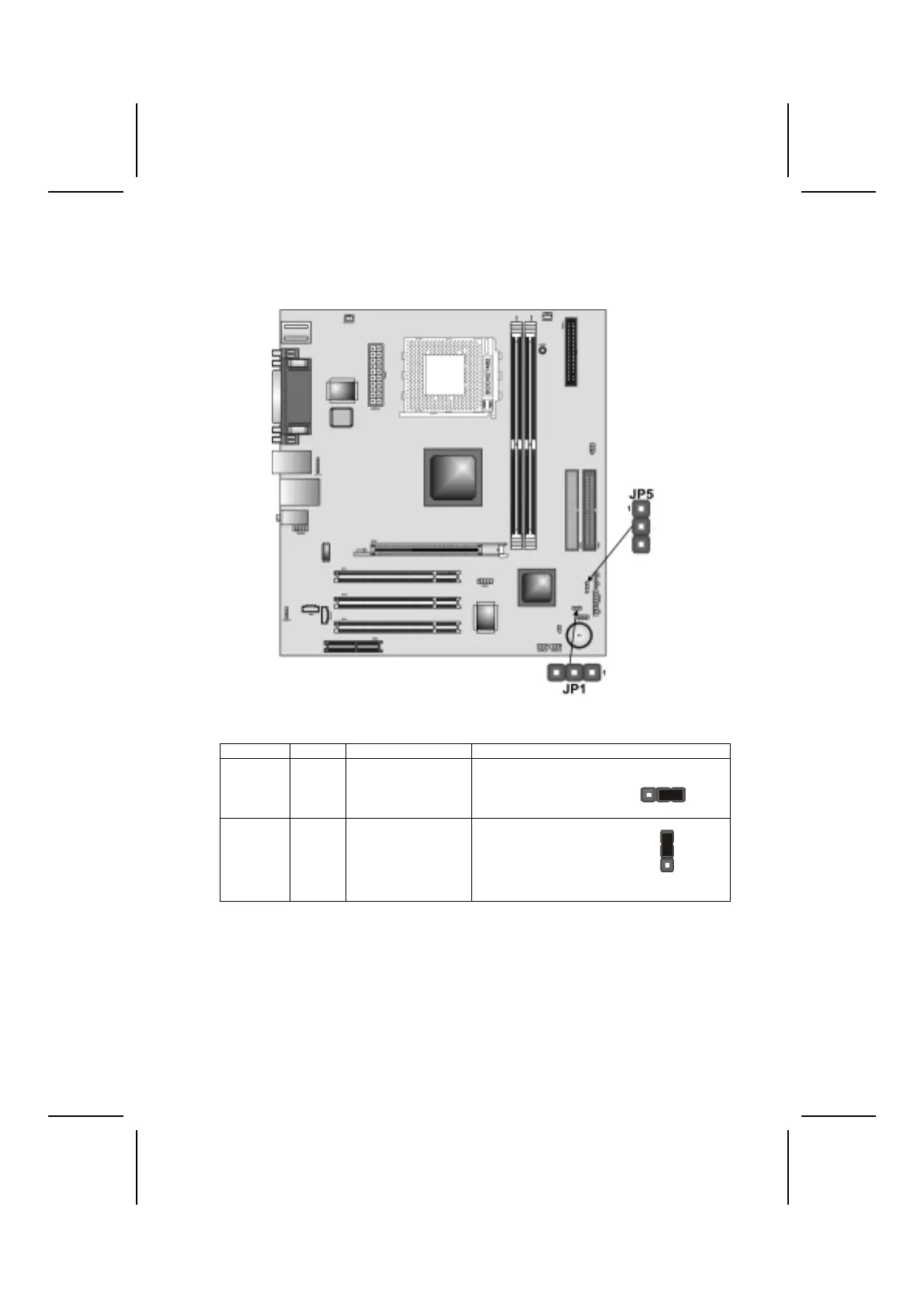

The following illustration shows the location of the motherboard jumpers. Pin 1
is labeled.
Jumper Settings
Jumper Type Description Setting (default)
JP1 3-pin Clear CMOS 1-2: Normal
2-3: Clear CMOS
JP1
1
JP5 3-pin CPU Frequency 1-2: 100Mhz
2-3: 133Mhz
JP5
1
JP1 – Use this jumper to clear the contents of the CMOS memory.
You may need to clear the CMOS memory if the settings in
the Setup Utility are incorrect and prevent your motherboard
from operating. To clear the CMOS memory, disconnect all
the power cables from the motherboard and then move the
jumper cap into the CLEAR setting for a few seconds.
JP5 – This jumper allows you to set the CPU frequency (100MHz
or 133MHz) according to the CPU.
