Installing Add-on Cards
The slots in this motherboard are designed to hold expansion cards and con-
nect them to the system bus. Expansion slots are a means of adding or
enhancing the motherboard’s features and capabilities. With these efficient
facilities, you can increase the motherboard’s capabilities by adding hardware
which performs tasks that are not part of the basic system.
PCI Slots
PCI slots are used to install expansion cards that have the 32-bit
PCI interface.
AGP Slot
The AGP slot is used to install a graphics adapter that supports the
4x AGP specification and has a 4xAGP edge connector.

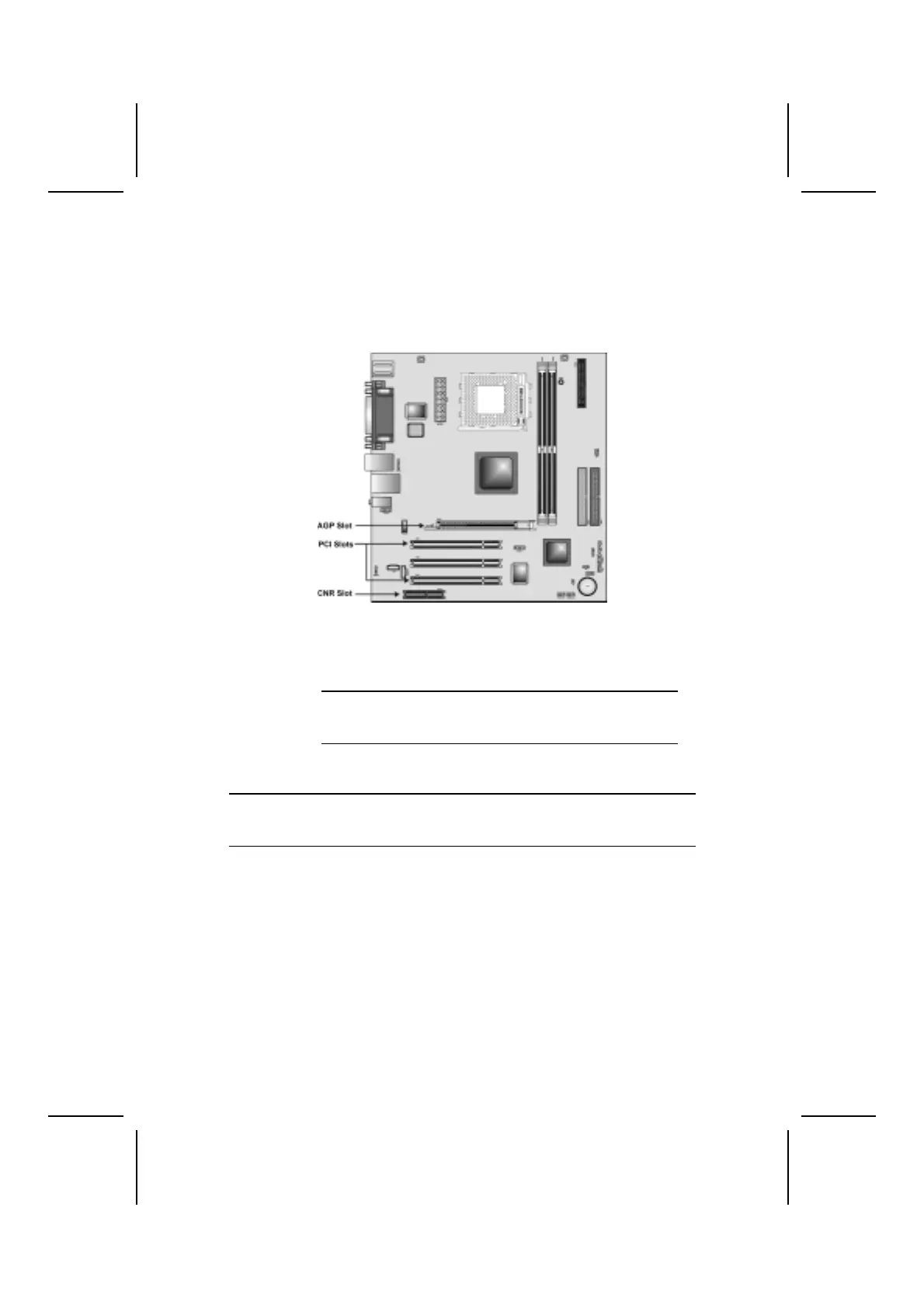

Note: The layout is for reference only. The AGP slot may be
different from your motherboard. Please refer to actual
shipment.
CNR Slot
This slot is used to insert CNR cards with Modem and Audio func-
tionality.
Note: Before installing an add-on card, check the documentation for the card
carefully. If the card is not Plug and Play, you may have to manually con-
figure the card before installation.
