Chapter 2
8
NM70-I USER MANUAL
2-3. Checking Jumper Settings
T
o avoid the sys
tem ins
tability aft
er clearing CMOS, we recommend users t
o
enter the main BIOS setting page to “Load Default Settings” and then “Save
and Exit Setup”.

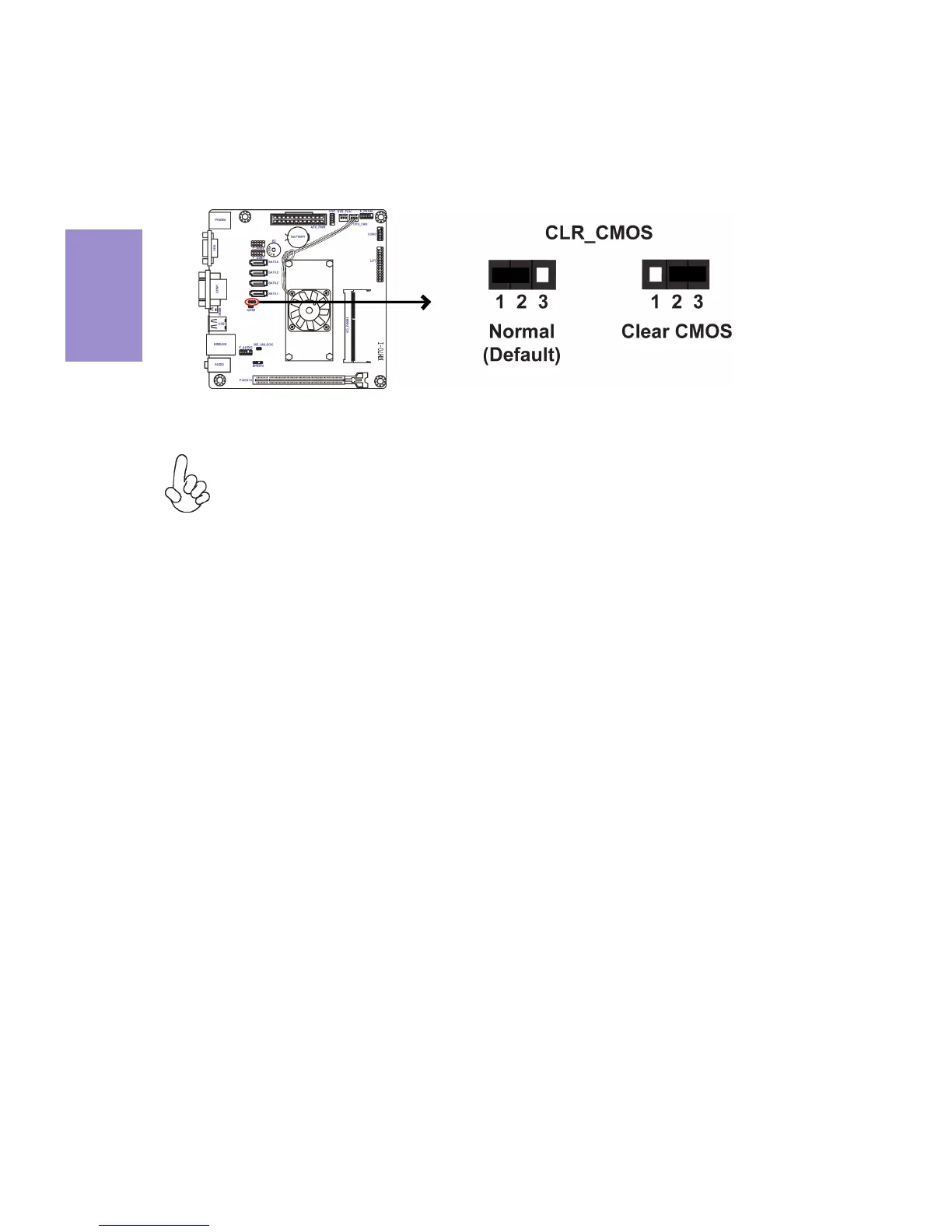

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
11
13
