ECS NM70-I User Manual

Chapter 3
NM70-I USER MANUAL
29
PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Main Advanced Chipset Tweak Boot Security Exit
System Temperature : 50°C
CPU Fan Speed : 1783 RPM
System Fan Speed : 0 RPM
CPU Voltage : 1.164V
DIMM Voltage : 1.528 V
-=- PECI Mode -=-
Offset to TCC Activation Temp. : -58
+/- : Change Opt.
Enter/Dbl Click : Select

: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit


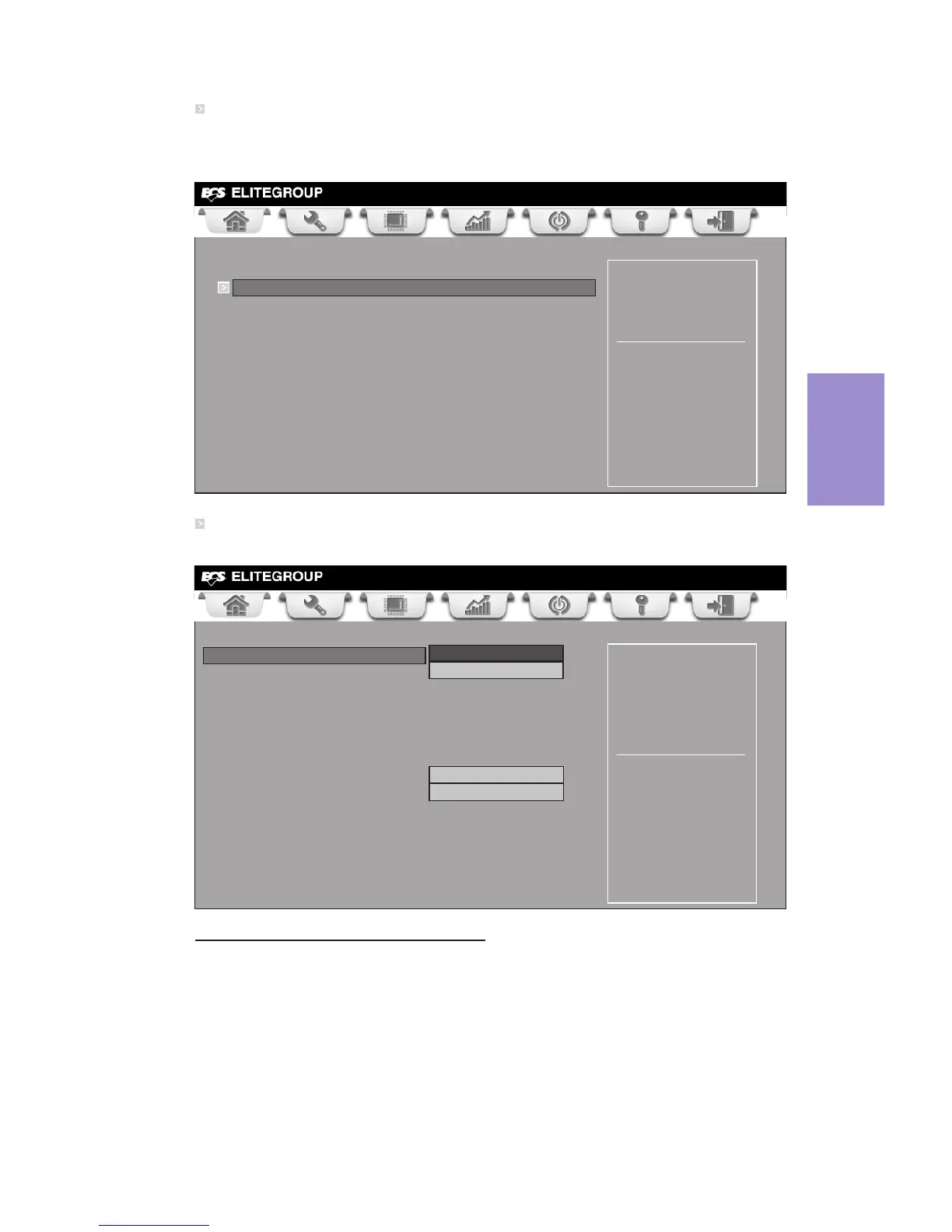

Scroll to this item and press <Enter> to view the following screen:
Smart Fan Function
Main Advanced Chipset Tweak Boot Security Exit
CPU Smart Fan Control Enabled
Smart Fan Mode Normal
PC Health Status
Smart Fan Function
High Limit Offset (-) : 30
Low Limit Offset (-) : 40
High Limit PWM : 200
Low Limit PWM : 58
System Smart Fan Control Enabled
Smart Fan Mode Normal
High Limit Offset (-) : 30
Low Limit Offset (-) : 40
High Limit PWM : 200
Low Limit PWM : 58
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU/System Smart Fan Control (Enabled)
These items enable you to define the CPU/system by smartly adjusting the CPU/
system Fan. When it is set at certain temperature, the CPU/system Fan PWM value
will change accordingly.
