ECS NM70-I User Manual

Chapter 3
NM70-I USER MANUAL
36
Super IO Chip (F71869)
This item shows the information of the super IO chip.

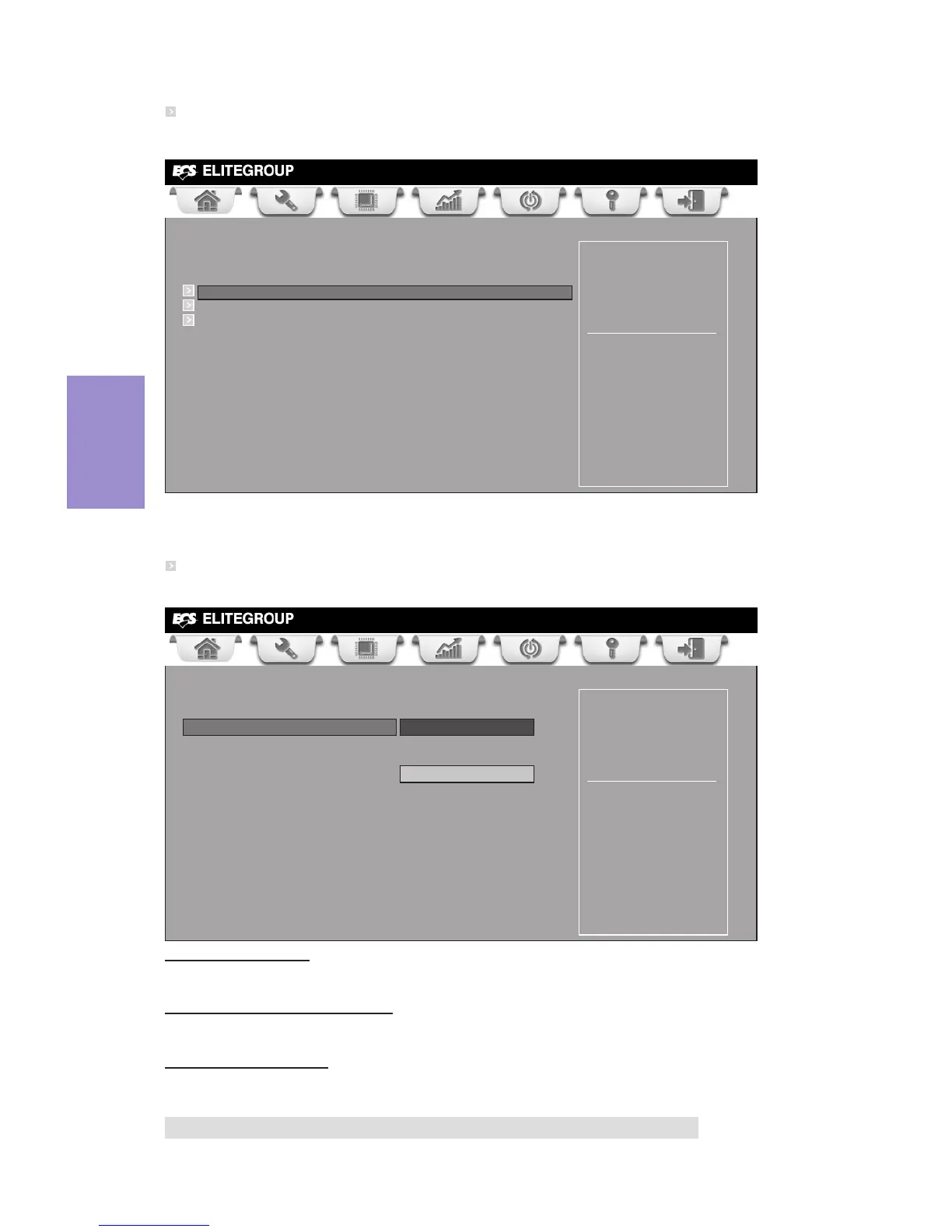

Super IO Configuration
Use this item to show the information of Super IO configuration.
Main Advanced Chipset Tweak Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Set Parameters of Serial
Port 0 (COMA)
Super IO Configuration
Super IO Chip F71869
Serial Port 0 Configuration
Serial Port 1 Configuration
Parallel Port Configuration
Main Advanced Chipset Tweak Boot Security Exit
Press <Esc> to return to the Super IO Configuration page.
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=3F8h; IRQ=4)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enabled or Disabled Serial
Port (COM)
 Serial Port 0 Configuration
Scroll to this item and press <Enter> to view the following screen:
Serial Port 0 Configuration
Serial Port Enabled
Device Settings IO=3F8h; IRQ=4;
Change Settings Auto
