Chapter 2
13
NM70-I USER MANUAL

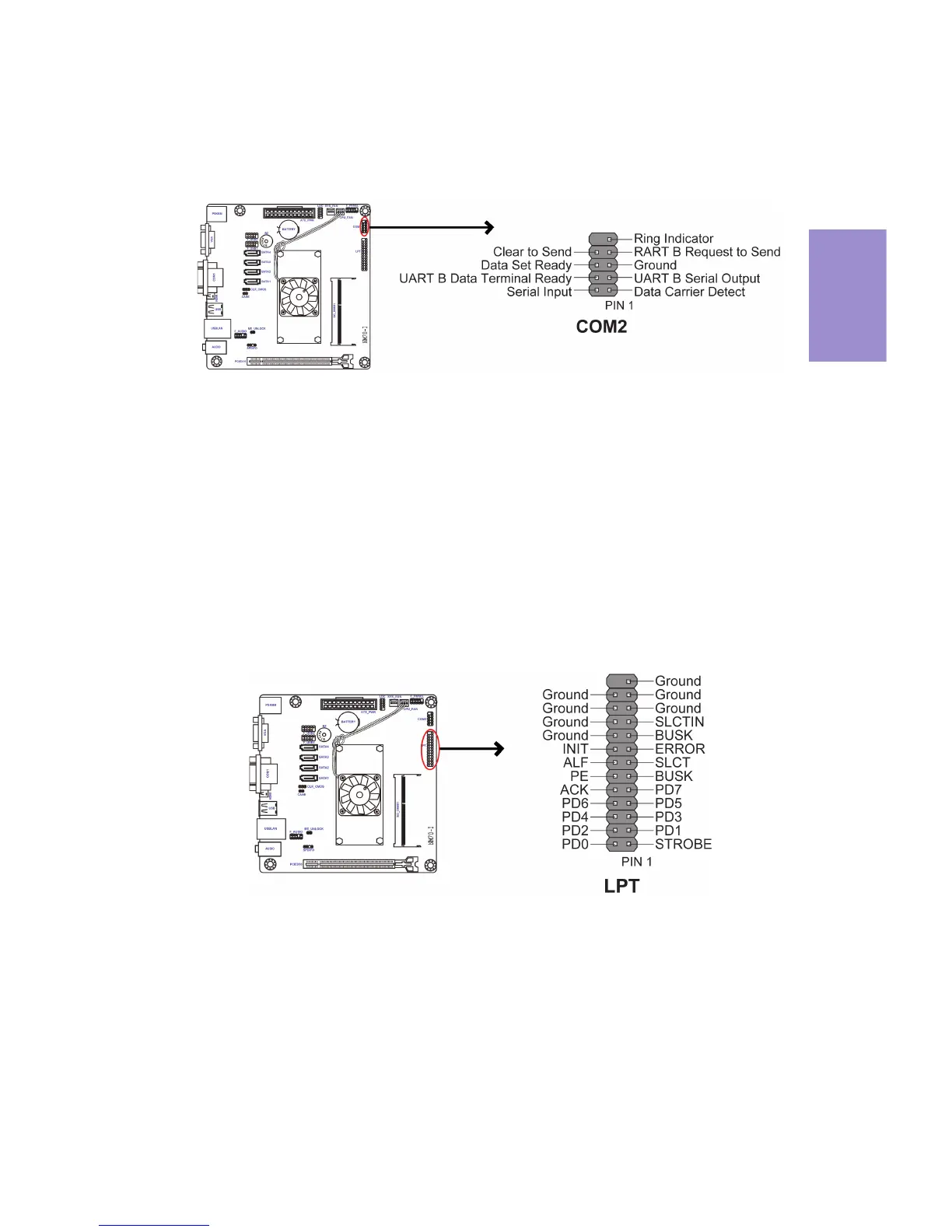

2. COM2: Onboard serial port header
Connect a serial port extension bracket to this header to add a serial port to your
system.
3. LPT
: Onboard par
allel port header
This header can be used to c
onnect to the print
e
r
, scanner or other devices.
