ECS Z170IU-C43 - Motherboard Components

Z170IU-C43 USER MANUAL
3

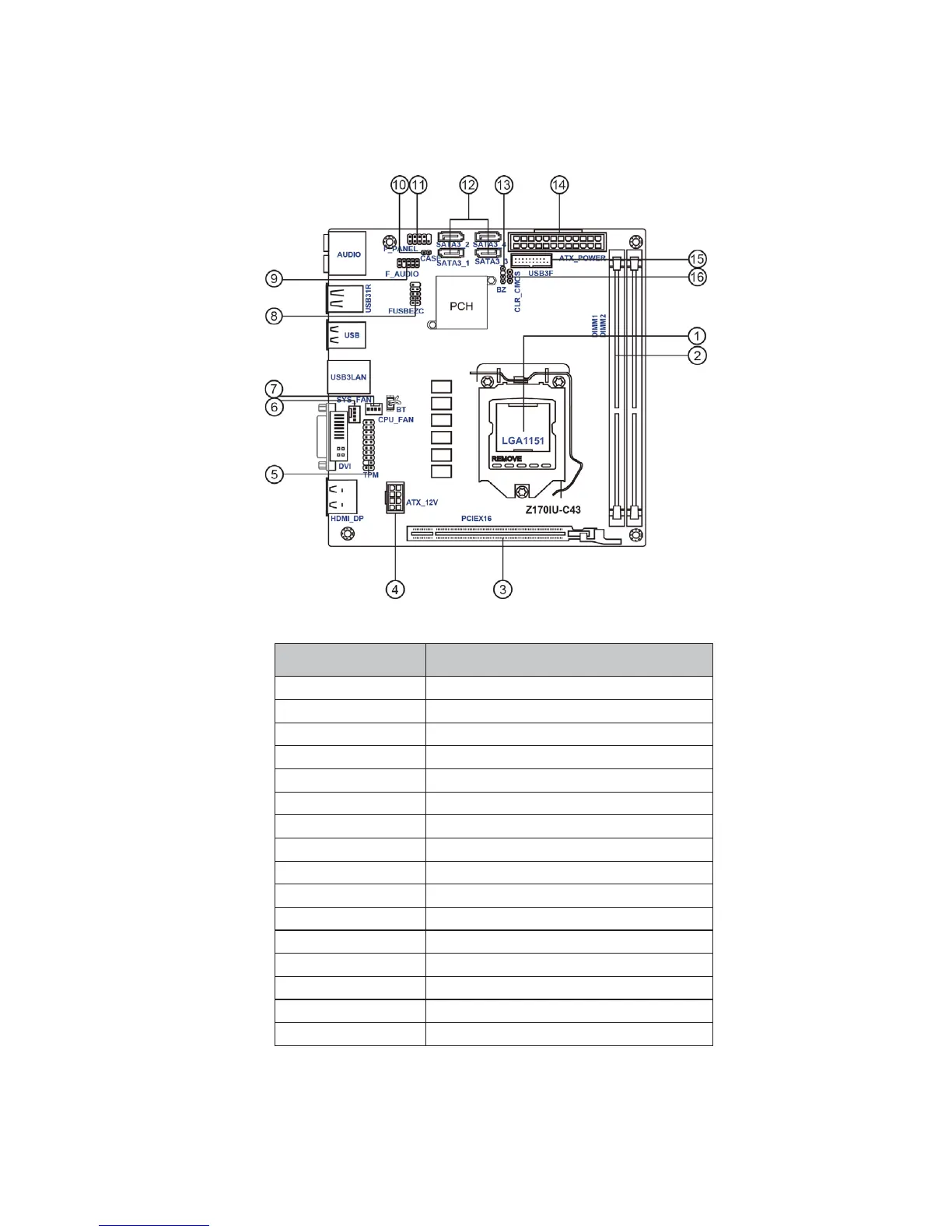

Motherboard Components
Table of Motherboard Components
LABEL COMPONENTS
1. CPU Socket
LGA1151 Intelϟ Skylake family socket
2. DIMM_1~2 288-pin DDR4 Module slots
3. PCIEX16 PCI Express slot for graphics interface
4. ATX_12V 8-pin +12V power connector
5. TPM Trusted Platform Module header
6. SYS_FAN 4-pin System cooling fan connector
7. CPU_FAN 4-pin CPU cooling fan connector
8. FUSBEZC Front USB EZ Charger header
9. F_AUDIO Front panel audio header
10. CASE CASE open header
11. F_PANEL Front panel switch/LED header
12. SATA3_1~4 Serial ATA 6.0 Gb/s connectors
13. BZ Buzzer header
14. ATX_POWER Standard 24-pin ATX power connector
15. USB3F Front Panel USB 3.0 header
16. CLR_CMOS Clear CMOS jumper
