ECS Z97M-PK User Manual

Chapter 3
Z97M-PK USER MANUAL
34
Smart Fan Mode (Normal)
This item allows you to select the fan mode (Normal, Quiet, Silent, or Manual) for a
better operation environment. If you choose Normal mode, the fan speed will be
auto adjusted depending on the CPU temperature. If you choose Quite mode, the
fan speed will be auto minimized for quiet environment. If you choose Silent mode,
the fan speed will be auto restricted to make system more quietly. If you choose
Manual mode, the fan speed will be adjust depending on users’ parameters.

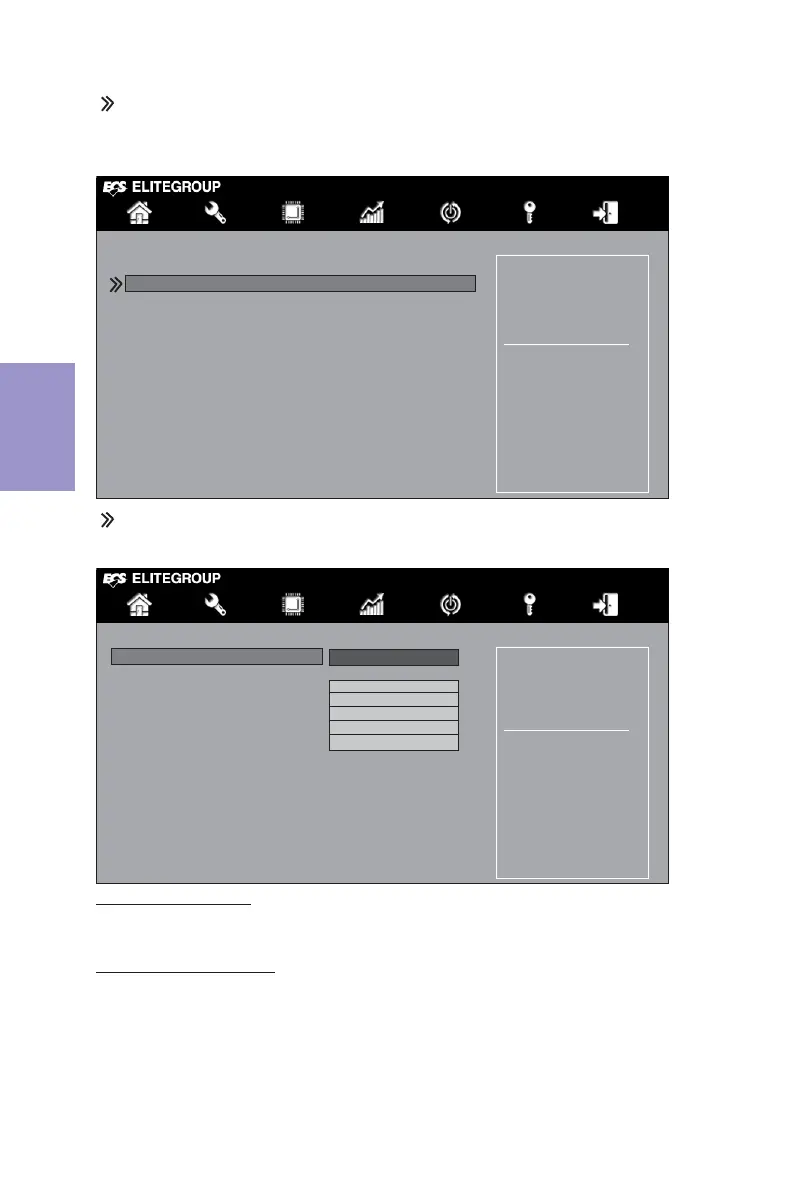

PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Scroll to this item and press <Enter> to view the following screen:
 Smart Fan Function
Main Advanced Chipset M.I.B. III Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Temperature (DTS) 46
System Temperature 31
O
C
CPU Fan Speed 3426 RPM
System Fan Speed 4787 RPM
Core Voltage 1.728V
DIMM Voltage 1.488V
+12V 12.096V
+5V 5.124V
+3.3V 1.056V
TCC Activation Temperature (DTS) 75
Smart Fan Function
PC Health Status
Smart Fan Select
Main Advanced Chipset M.I.B. III Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Smart Fan Select CPU
Smart Fan Mode Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP(DTS) 45
DeltaT 3
Smart Fan Slope PWM value 10
Fan Full Speed Offset (DTS) 52
Smart Fan Select (CPU)
This item allows you to change and configure Smart Fans on M/B. ex. CPU Fan1, CPU
Fan2, System Fan1.
