ECTIVE CSI34 User Manual

[
ECTIVE
®
SINUS/SINE INVERTER – CSI-/SSI-SERIES
]
45

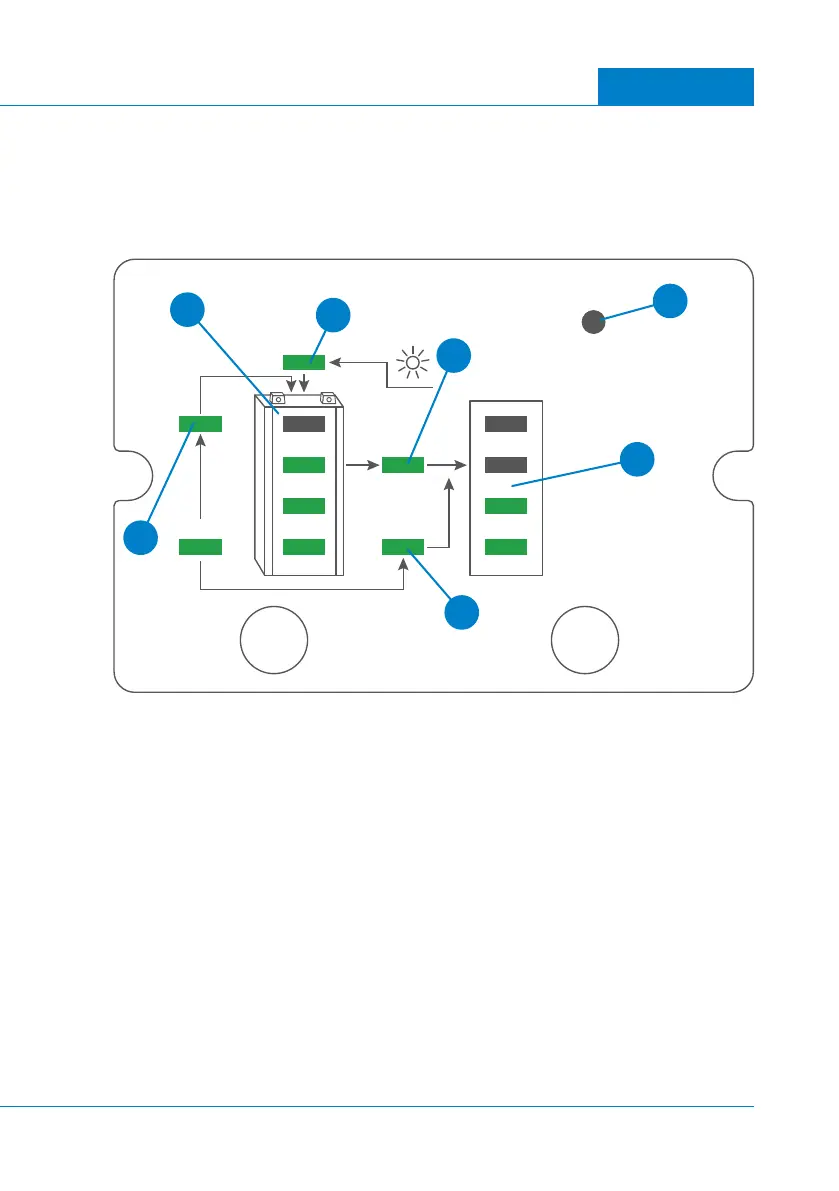

Front view: Illustration 9
Multi-function remote control KS04
(total SSI-series)
INVERTER
BYPASS
OFF
100 %
100 %
75%
50%
25%
75 %
50 %
25%
AC IN
LOAD
Flash: Fault
ON
Inverter Remote Controller
Model No KS-04
AC
CHARGE
BATTERY
SOLAR CHARGE
7
2
6
1
3
4
5
1. failure LED
2. battery status
3. inverter on
4. load status
5. bypass on
6. integrated charger on
7. solar power charge
Applies to KS03 and KS04
Bypass-mode: mains priority circuit activated.
Status display:
• charging status: flashes during the charging process and permanently illuminated
when battery is fully charged.
The remote indicates in two tables the instantaneous voltage and percentage utilization
in 25% steps proportional to the continuous output of the device.
