Acclarix AX3 Series Diagnostic Ultrasound System User Manual Getting Started
- 16 -

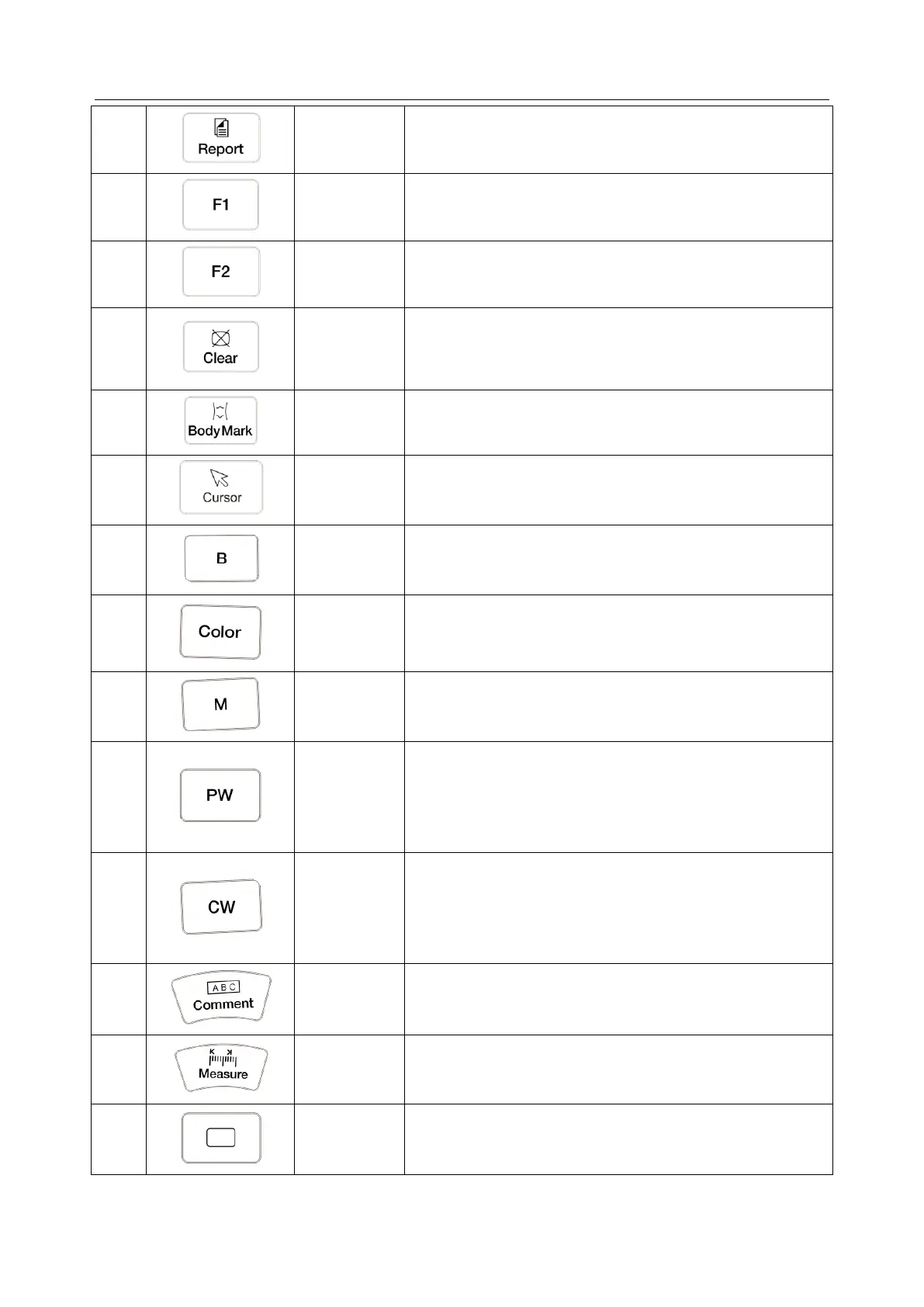

6.
Report
Press to display the report page.
7.
F1
User-defined button
8.
F2
User-defined button
9.
Clear
Press to clear all the measurements, calculations,
comments, and body marks displayed on the current
image.
10.
Body Mark
Enters or exits the Body Mark function. See section 7.2 for
details.
11.
Cursor
Press to hide or display the mouse cursor.
12.
B
Press to return to B-mode imaging from any other imaging
modes. See section 5.1 for details.
13.
Color
Press to enter or exit Color Mode. See section 5.2 for
details.
14.
M
Press to enter or exit M Mode. See section 5.5 for details.
Use the trackball to adjust the M sample line.
15.
PW
Press to get the sample line. Use the trackball to adjust
the position of the sample line. Press it again to display
the Doppler strip.
See section 5.3 for details.
16.
CW
Press to get the sample line. Use the trackball to adjust
the position of the sample line. Press it again to display
the Doppler strip.
See section 5.4 for details.
17.
Comment
Enters or exits the Comment function. See section 7.1 for
details.
18.
Measure
Invokes the Measure function for Generic and Application
Measurements. See section 8 for details.
19.
Single
Press to display the currently active side of Dual image as
a single image. See section 7.3 for details.
