Acclarix AX3 Series Diagnostic Ultrasound System User Manual Utilities
- 120 -

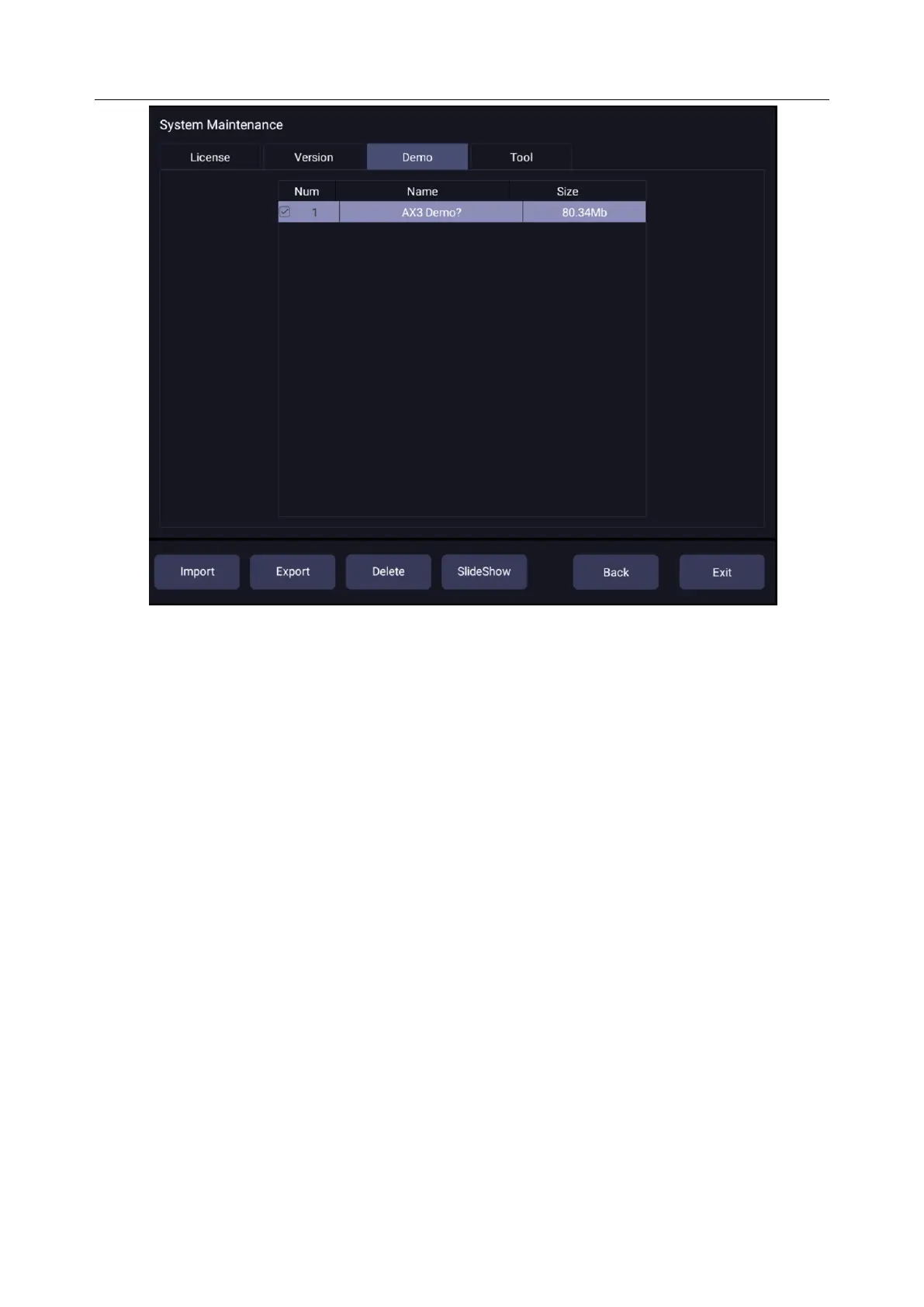

Figure 11-9 Demo Screen
11.3.4. Tool
The Tool screen provides access to system maintenance which must be performed by authorized
service personnel. Please refer to the Service Manual for the details.
11.4 Screen Adjust
Entering Screen Adjust Screen:
Open Utility page. Press Set up touch screen button, and then the Screen Adjust touch screen
button to access Screen Setup touch screen.
The brightness and contrast of the monitor and touch screen in the system can be customized.
 Main Screen Brightness: adjusts the brightness value of the monitor.
 Main Screen Contrast: adjusts the contrast value of the monitor.
 Touch Screen Brightness: adjusts the brightness value of the touch screen.
Press Restore all settings button to restore the factory settings for all the brightness and contrast
values.
