Acclarix AX3 Series Diagnostic Ultrasound System User Manual Utilities
- 107 -
10.3.5. Measure Preset

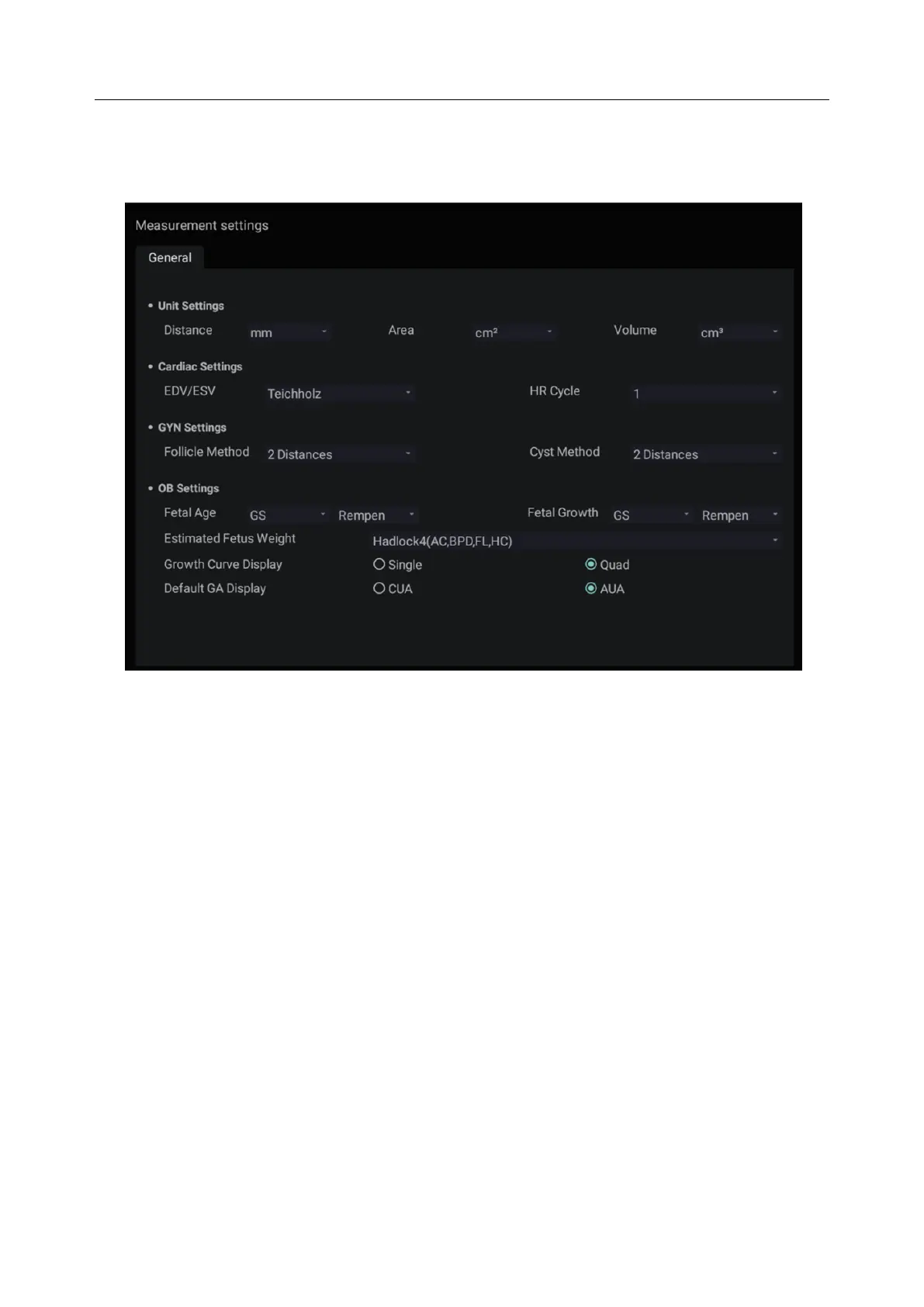

Figure 10-8 shows an example set-up screen for Measure Preset, where you can configure general
measurement settings.
Figure 10-8 Measure Preset Screen
 Unit Settings
The system supports following unit settings:
 Distance: Set the default unit of distance measurement. "mm" and "cm" are available.
 Area: Set the default unit of area measurement. "mm
2
" and "cm
2
" are available.
 Volume: Set the default unit of volume measurement. "mm
3
" and "cm
3
" are available.
 Cardiac Settings
The system supports following Cardiac measurement settings:
 EDV/ESV: set the author of the formula that is used in EDV/ESV calculation. There are
three options: Teichholz, Gibson and Cube.
 HR Cycle: set the number of heartbeats that are assumed in the HR or FHR measurement
calculation. Range: 1-8.
 GYN Settings
The system supports following GYN measurement settings:
 Follicle Method: Set the default method for follicle measurement. "1 Distance", "2
Distances" and "3 Distances" are available.
 Cyst Method: Set the default method for cyst measurement. "1 Distance", "2 Distances"
and "3 Distances" are available.
