- 26 -

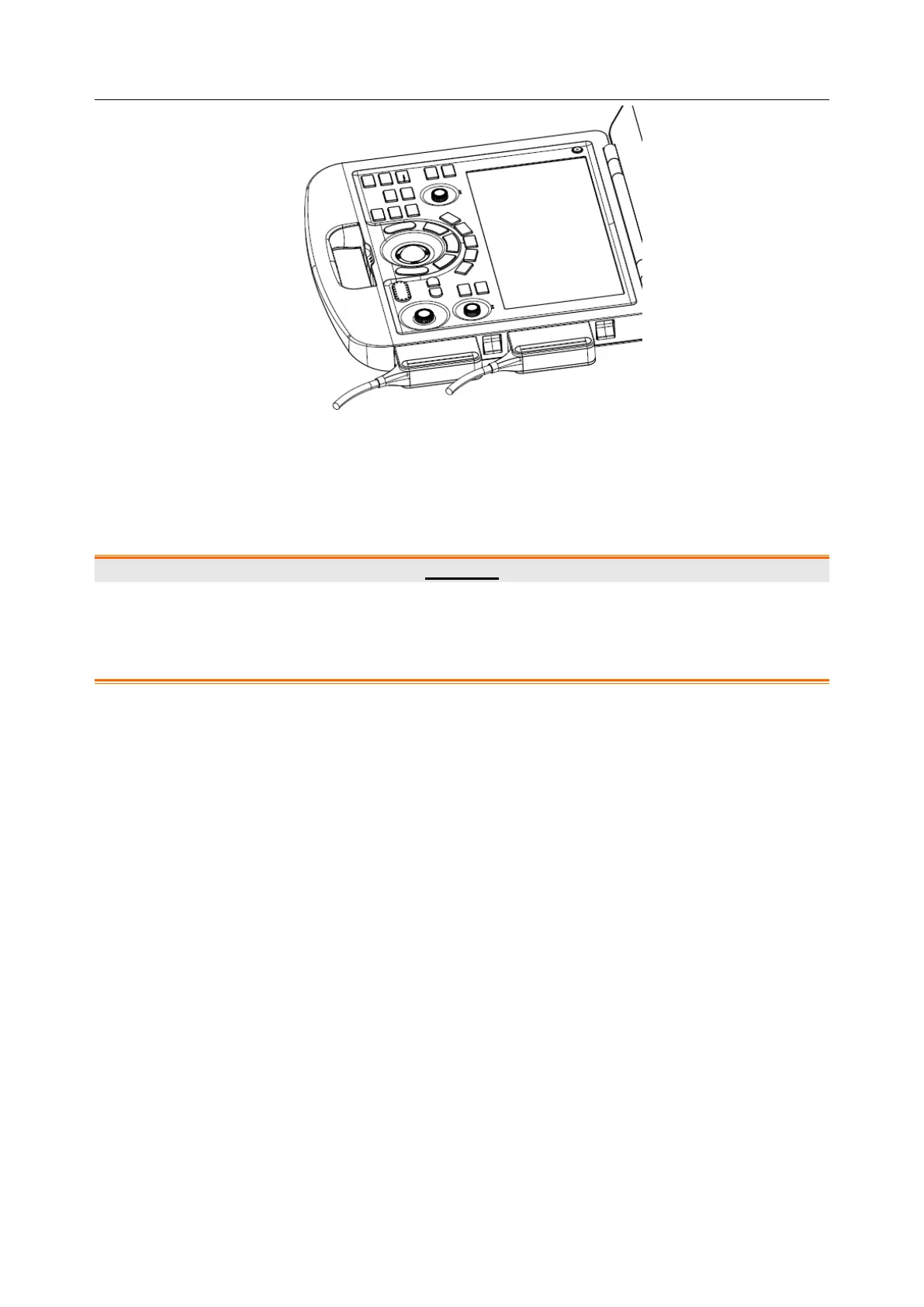

Figure 3-9 Lock the tansducer locking handle
To disconnect a transducer:
1. Toggle the locking handle to the bottom position to unlock the transducer connector.
2. Firmly grasp the transducer connector and carefully remove it from the system port.
3. Store transducer in its protective carrying case prior to transport.
CAUTION
1. Do not touch the pins of the transducer connector.
2. Broken or bent connector pins can cause image artifacts. Do not use a transducer with broken or
bent pins.
3. Only disconnect a transducer when the system is shutdown or is frozen.
