Acclarix AX3 Series Diagnostic Ultrasound System User Manual Measurements and Reports
- 94 -

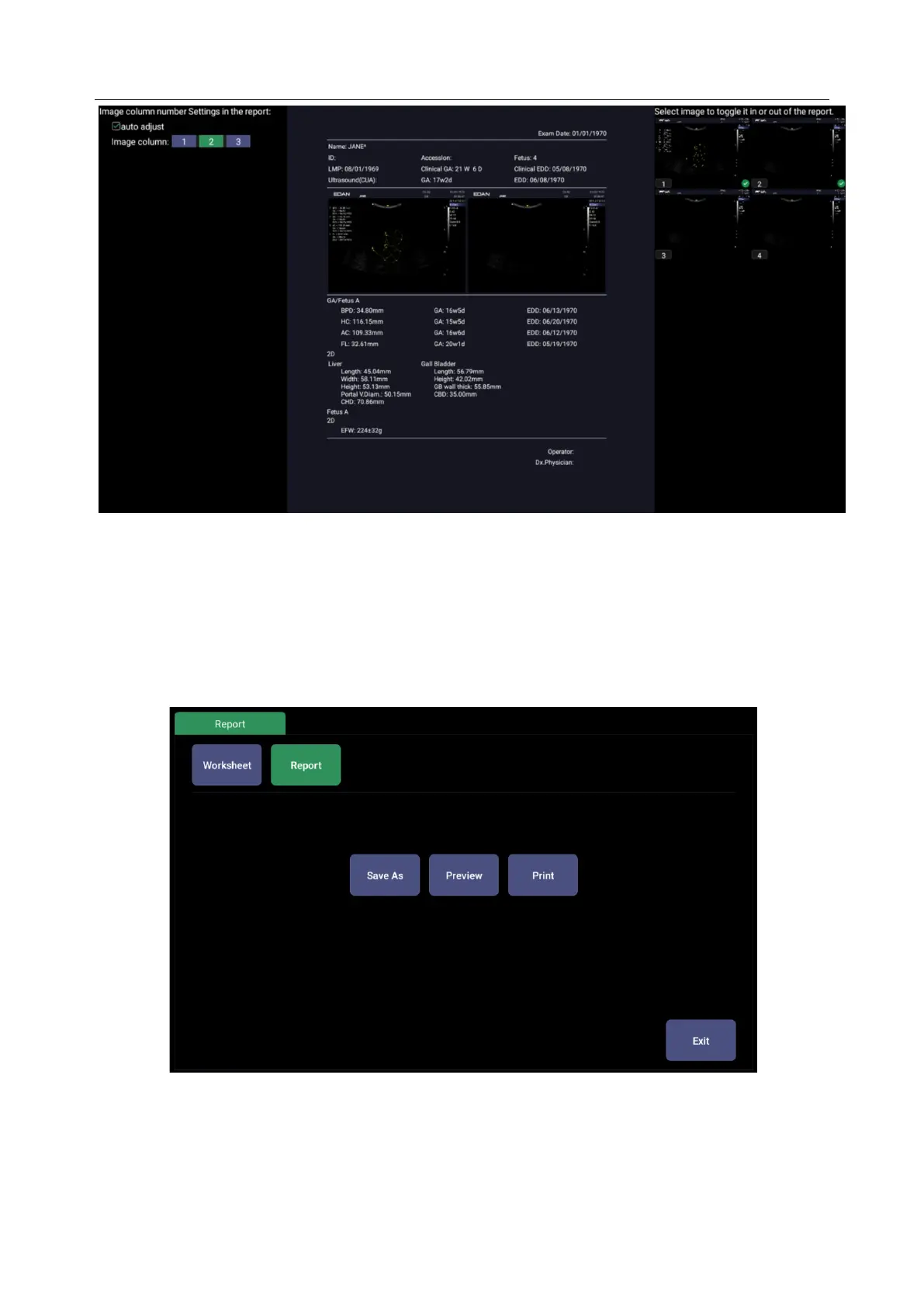

Figure 8-11 Report Main Screen
The middle part of the main screen is the general layout of a report.
On the left side of the main screen, you can set the layout of the report:
Auto Adjust: Automatically adjusts the layout of the report.
Image Column: Selects the column number and the images will be displayed accordingly.
On the right side of the main screen, you can select images to add into the report. Maximum 21
images can be added to the report.
Figure 8-12 Report Touch Screen
Save As: Press it to store the report as PDF file to external storage.
Preview: Press it to invoke print preview before print. Then switching report pages and zooming in
report are supported.
Print: Press it to print the report when connecting a USB report printer.
