Acclarix AX3 Series Diagnostic Ultrasound System User Manual Utilities
- 103 -

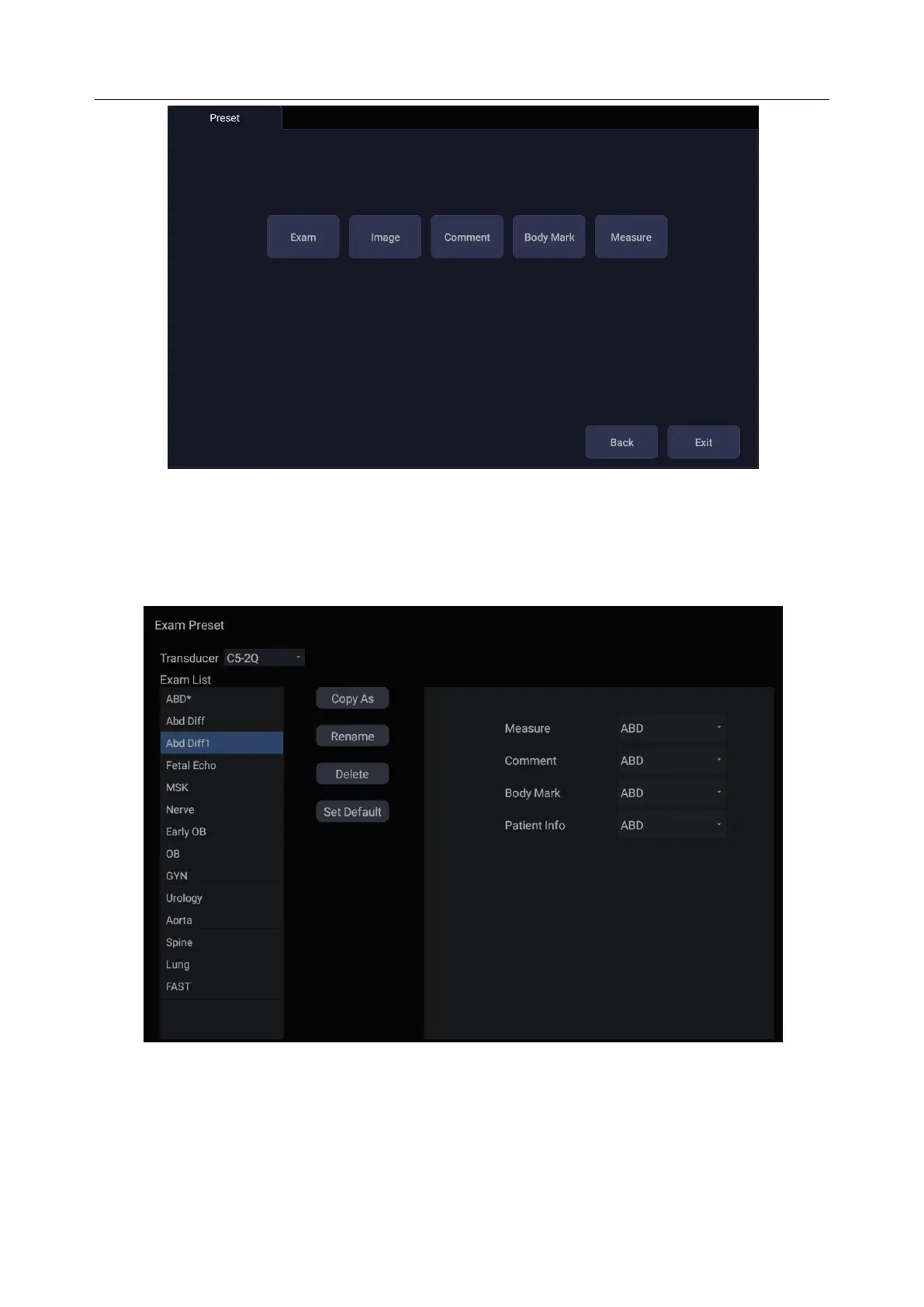

Figure 10-3 Preset Main Screen
10.3.1. Exam Preset
Figure 10-4 shows an example of the exam preset page where you can configure which Comment,
Measure, Body Mark or Patient info presets are associated with each exam preset.
Figure 10-4 Exam Preset Page
Transducer: Select one transducer from the list to configure its exam presets.
Exam List: Select one exam preset to configure its associated Comment, Measure, Body Mark or
Patient info settings.
Measure: Select one of the pre-defined application measurement packages to be the default measure
preset for the selected exam preset.
