EDAN M3 Service Manual

M3 Vital Signs Monitor Service Manual
- 27 -
authorized by EDAN.
NOTE:
The calibration of NIBP is just a method for checking the measuring result, it will not
change the measuring standard.
NIBP Calibration needs T-connector, hose and Thermometer.
Calibration procedure:

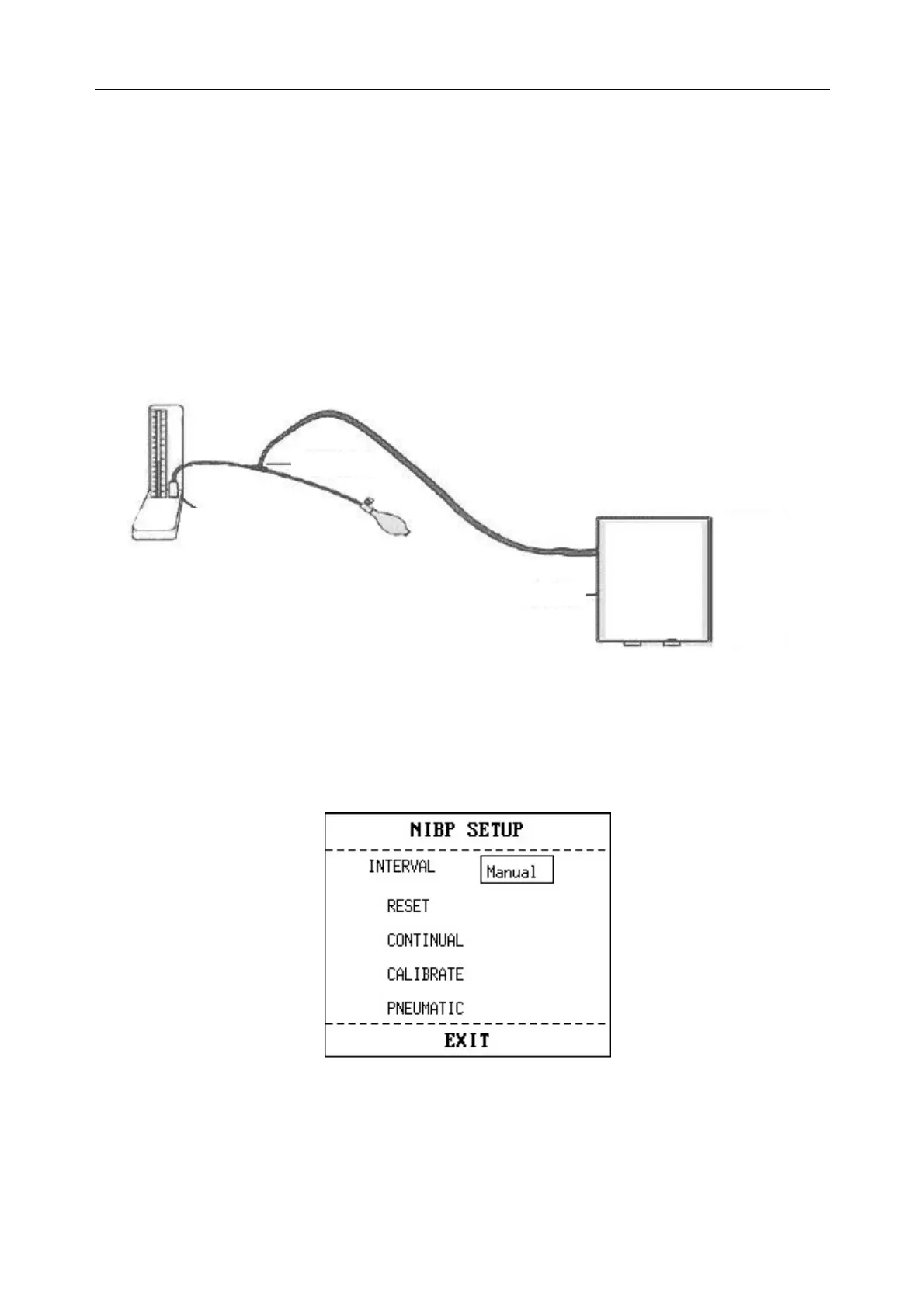

1. Connect air way as indicated in figure 4-1;
Figure4-1 NIBP calibration
2. Enter NIBP SETUP menu;
3. Press CALIBRATE in NIBP SETUP menu, as shown in the following menu:
Figure4-2 NIBP Calibrate
4. Fill air into system, observe real-time pressure value and displayed pressure value in
Thermometer.
If the two values are equal, we can consider NIBP measuring of monitor has no failure.
Thermometer
T-connector
Monitor
