EDAN M3 Service Manual

M3 Vital Signs Monitor Service Manual
- 1 -
1 Introduction
■ General Information
■ Screen Display
■ Button Functions
■ Interfaces
■ Built-in Chargeable Battery
1.1 General Information
M3 Vital Signs Monitor (hereinafter called monitor) monitors parameters such as SpO
2
(Areterial
oxygen saturation for pulse oximetry) and NIBP (Non-invasive blood pressure), and is adaptable
to adult, pediatric, and neonatal in a hospital environment and during patient transport both inside
and outside hospitals. The user can select different parameters configuration according to
different requirements in clinic, hospital or operating room.
The monitor centralizes the function of parameter measurement modules, display, record and
output to compose a compact, portable device. Its built-in replaceable battery provides
convenience for patient movement. On the LCD display screen, SpO
2
waveform and all the
monitoring parameters can be displayed clearly.
M3 monitor is a user-friendly device with operations conducted by a few buttons on the front
panel. Refer to Button Functions for details.

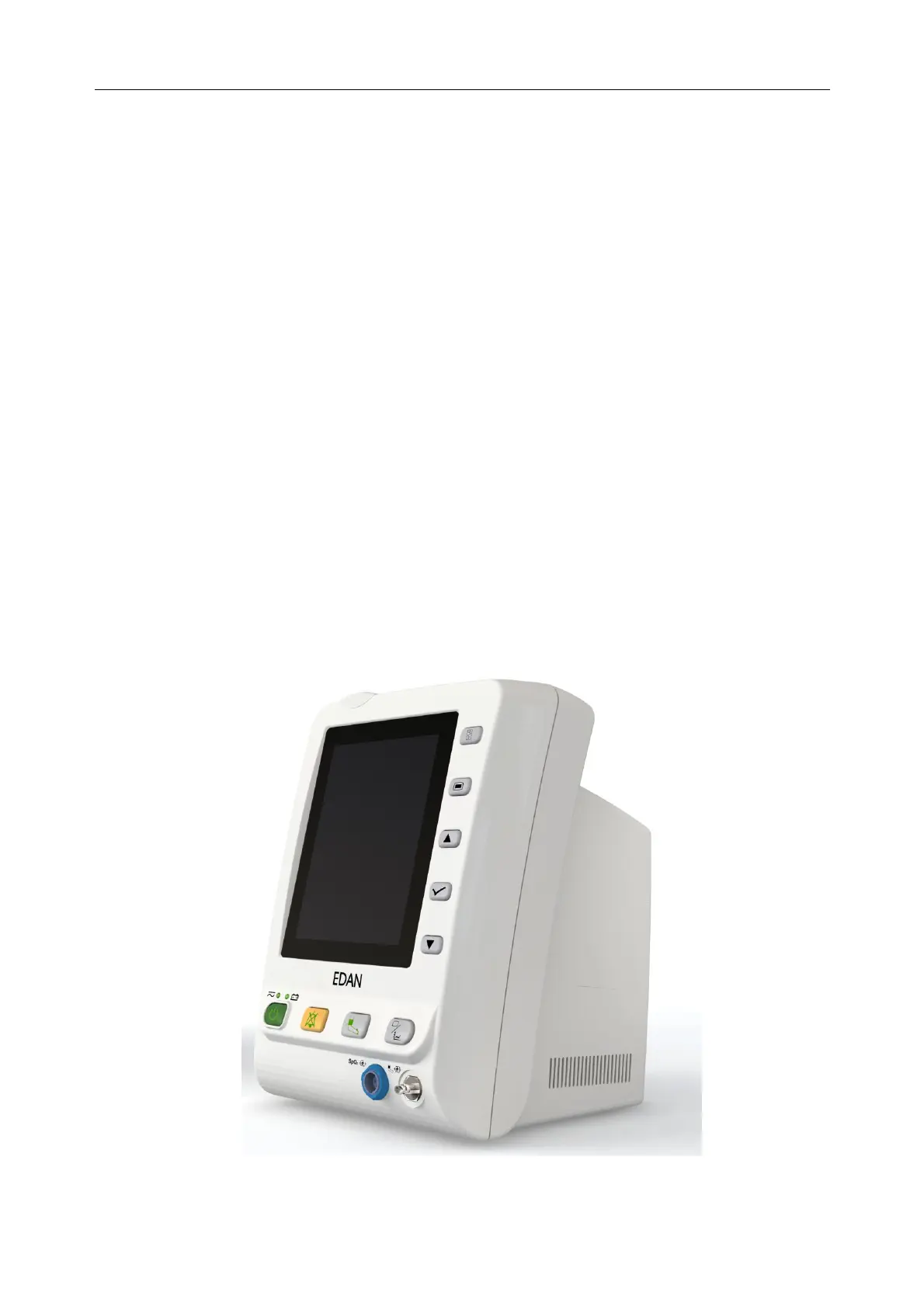

Figure1-1 M3 Vital Signs Monitor
