M3 Vital Signs Monitor Service Manual
- 31 -

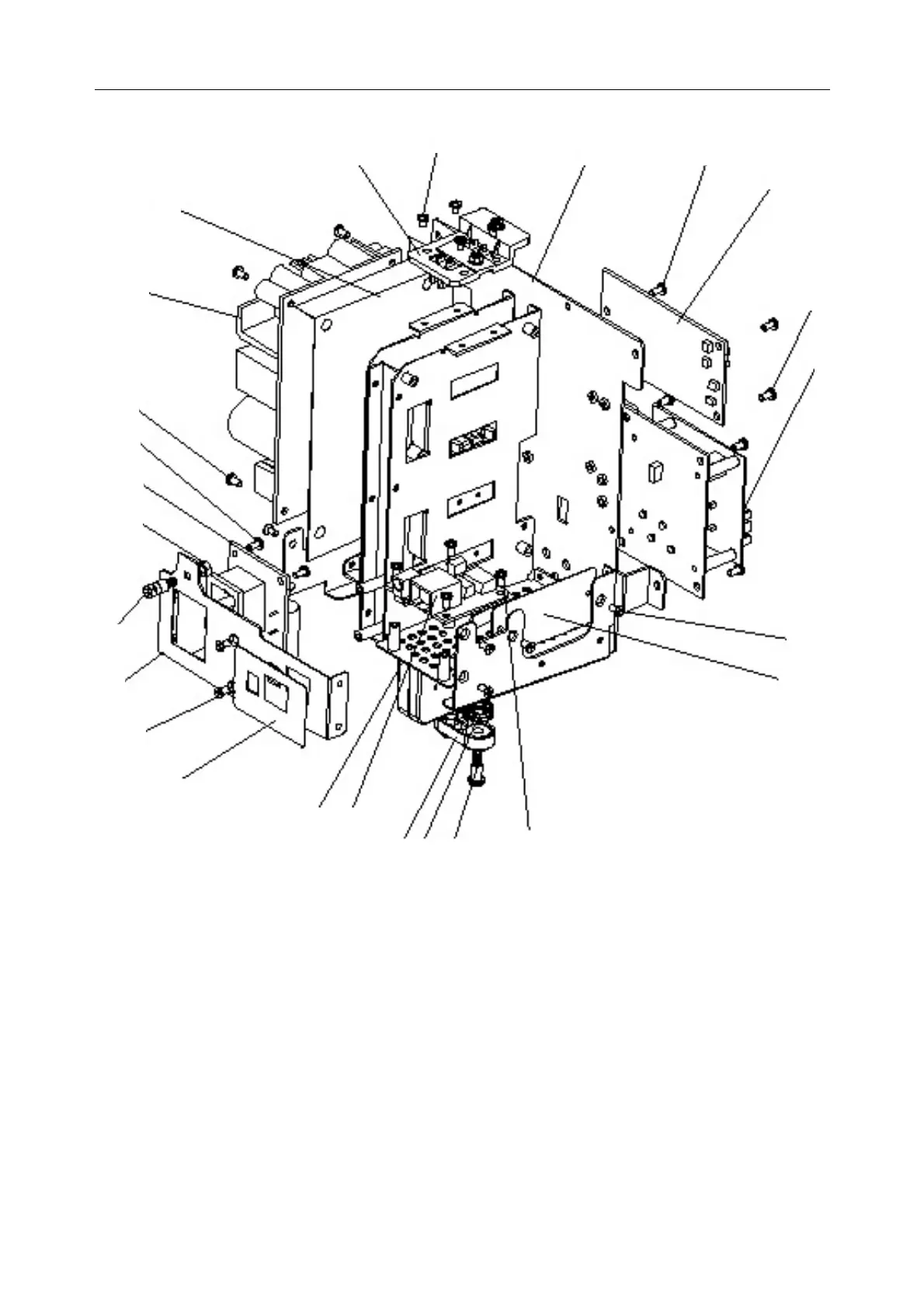

1: Label on M3 rear board; 2: Cross recessed countersunk head screw M3×6; 3: M3 rear
board; 4: M3 grounding wire pole; 5, 18: Nut M4; 6: AC power supply interface board; 7,
8, 12, 14, 16, 25: Cross recessed pan head screw M3×6; 9: Power board; 10: M3 power
module insulated gasket; 11: Lithium battery box connector components; 13: M3 main
bracket; 15: SpO
2
module; 17: NIBP module; 19: M3 baffle; 20: Lithium battery; 21:
Network interface board; 22: M3 battery baffle; 23: M3 battery baffle torsion spring; 24:
M3 battery baffle fixed nut.
Figure5-4 Support assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
20
21
25
19
18
22
23
24
