MT-201 Trolley Installation Guide
board goes halfway, pull down the pin
on the back of the top splint board to
allow the link board to go through. Keep
pushing the link board in until the pin
rebounds and clicks into the hole.

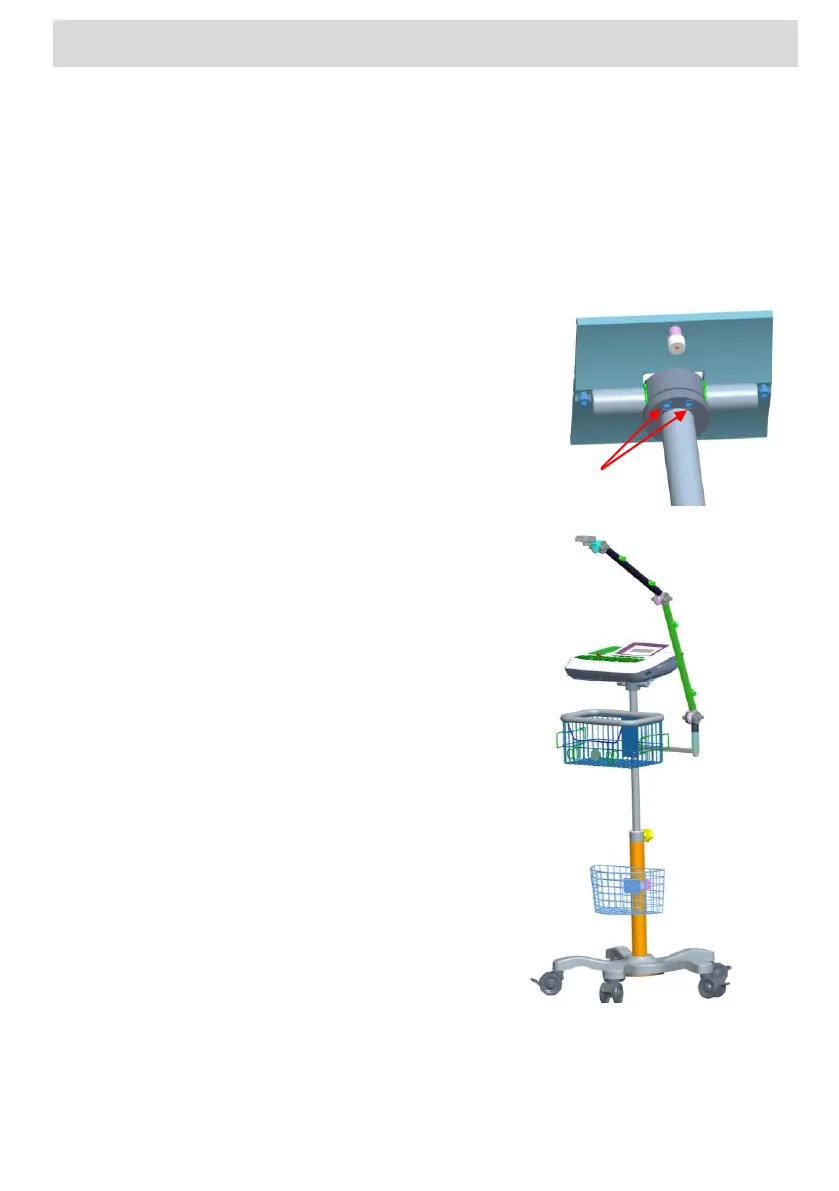

Adjusting the Angle of the Top Splint Board
1. Hold the eletrocardiograph/tablet
steadily. The adjustment can be rotated.
2. Adjust the top splint board to a proper
angle. During the angle adjustment, the
resistance could be controlled by
adjusting the two M5×16 screws
provided on the flange.
Using Casters
1. The casters have brakes. When you
need the trolley to stay still, step on the
pedal of each caster to lock it.
2. When you need to move the trolley,
push up the pedal of each caster to
release it.
