MT-201 Trolley Installation Guide

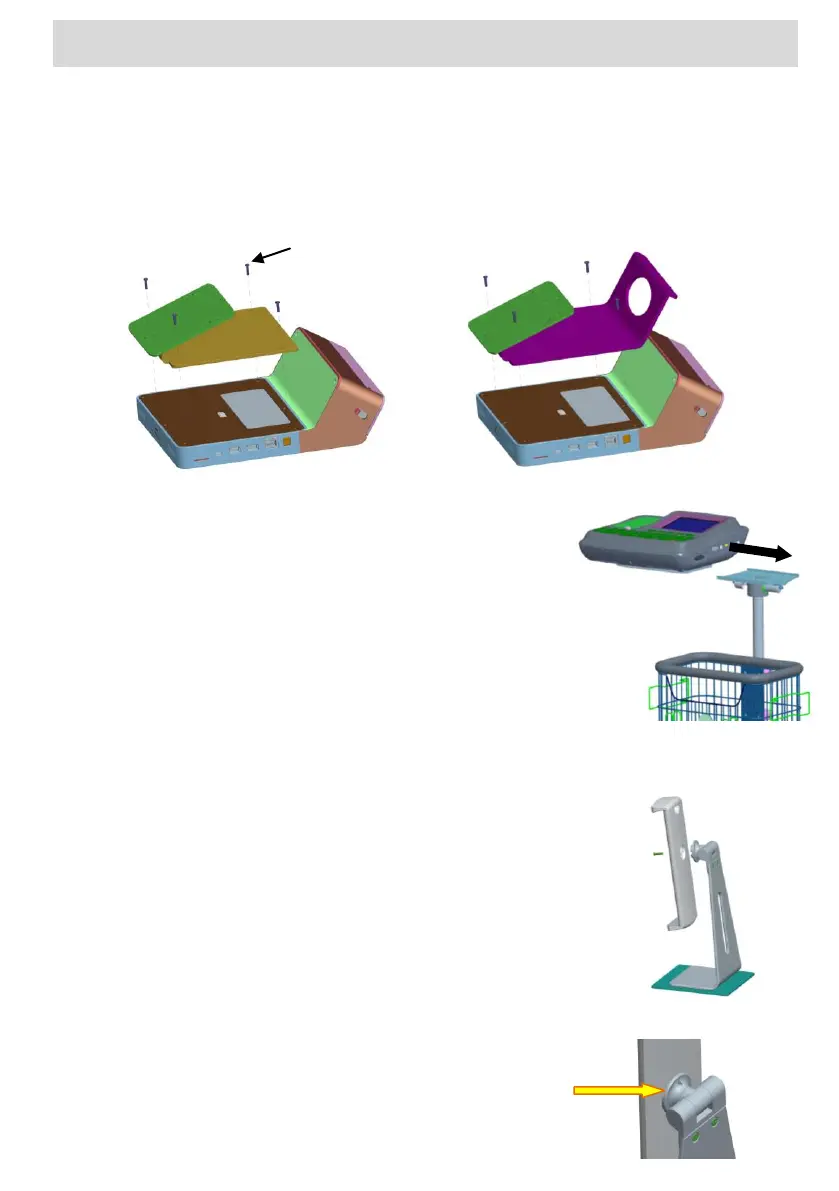

In the case of iSE series
electrocardiograph, upturn the
electrocardiograph. Align the link board
with the screw holes. Fix them with four
M3×12 screws. See the figures below.
2. Turn over the electrocardiograph, Lift it
and slide the link board into the groove
of the top splint board sideways. When
the board goes halfway, pull down the
pin on the back of the top splint board to
allow the board to go through. Keep
pushing the board in until the pin
rebounds and clicks into the hole.
Fixing the Tablet Mounting Bracket to the Trolley
1. Choose a clamp according to the size of
the tablet and fix it to the tablet mounting
bracket with an M3 × 14 cross recessed
countersunk head screw. Ensure that
the joint is seamless.
2. Lift the tablet mounting bracket and slide
the link board into the groove of the top
splint board sideways. When the link
M3×12 screws (4pcs)
