-7-
MT-201 Trolley Installation Guide
level the basket at the flanges and fix
them with two M5×14 screws.

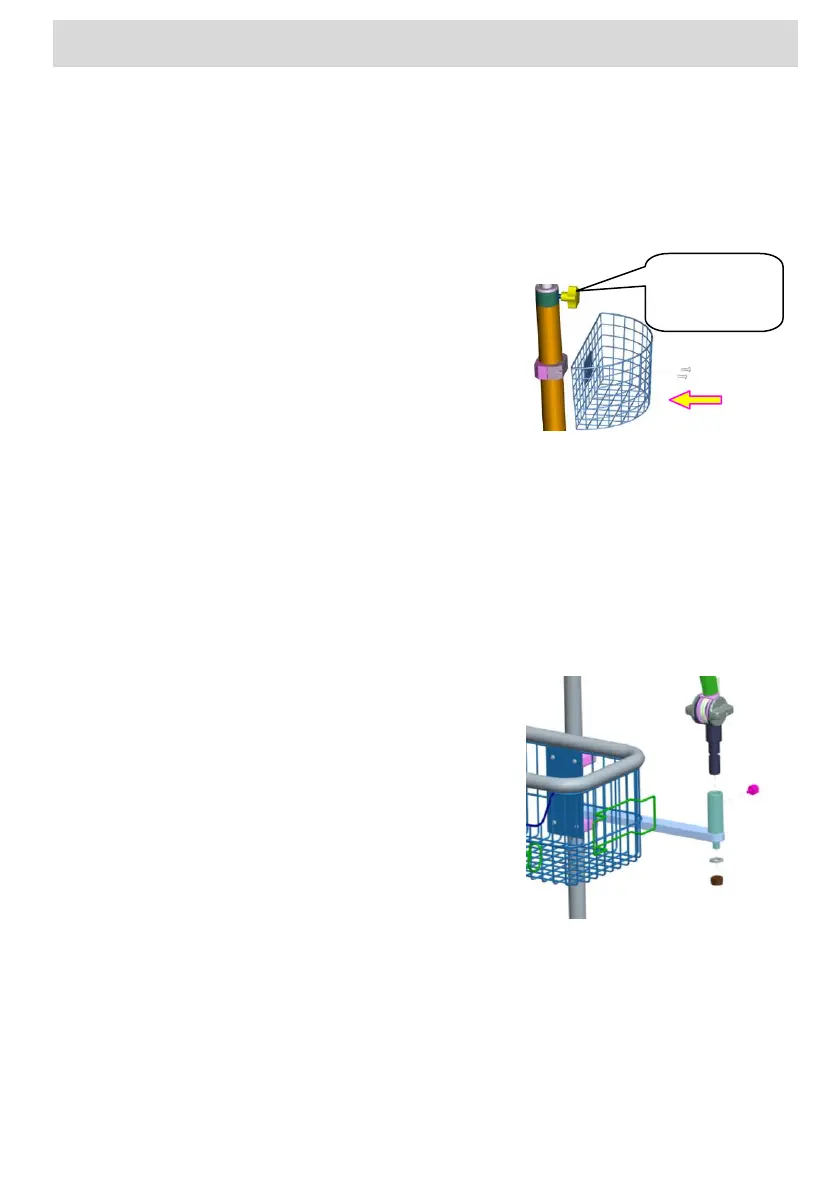

Adjusting the Height of the Top
Splint Board
Loosen the Height Adjustment Handle on
the joint of the posts by hand, move the
top post to a proper height and then
tighten the handle again.
NOTE:
1) The semicircular basket and its locking
flanges are optional.
2) The edge of the square basket is also
the handle, which can be held when
moving the trolley.
3) The following two steps are needed
only if the lead wire bracket package is
provided.
9. Rotate the bracket pedestal to the hole
of the bracket link board, put a Ф10 plain
washer to the flange of the pedestal,
and then tighten them with an M10 lock
nut.
NOTE: The hole to fix the bracket fastener should be on the back of the
pedestal provided that the square basket is in front.
10. Insert the lead wire bracket to the central hole of the pedestal and fix
them with a bracket fastener.
