-6-
MT-201 Trolley Installation Guide
into the groove of the chassis. Make
sure they are jointed well. Put a Ф10
spring washer and a Ф10 plain washer
on the M10×60 bolt. Use an 8mm
hexagon spanner to fix the bolt to the
central hole in the chassis from the
bottom.

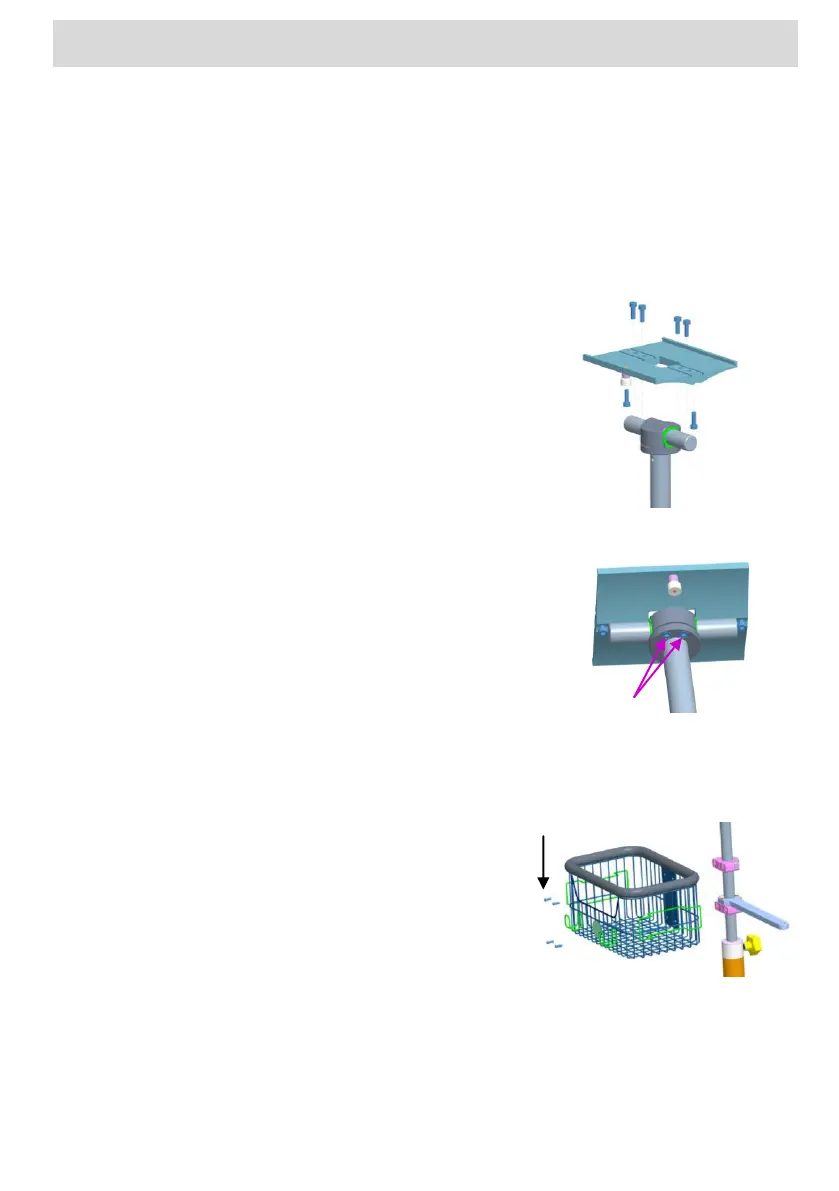

5. Place the top splint board on top of the
lifting post flange. Align its holes with the
rotary shaft holes and fix them with four
M5×16 screws. Insert two M5×16
screws on the bottom of the top splint
board but do not tighten them. The two
screws are used to fix the link board
later.
6. Fasten the top splint board with two
M5×16 screws.
7. Level the square basket at the two
locking flanges on the stand post, and
fix them with four M5×12 screws.
8. If the semicircle basket and its locking
flanges are to be configured, install the
flanges to a proper height on the stand
post using two M5×14 screws first. Then
To Next Page
