2.2 Bottom Panel
The silk screen on the battery compartment indicates the rated voltage.

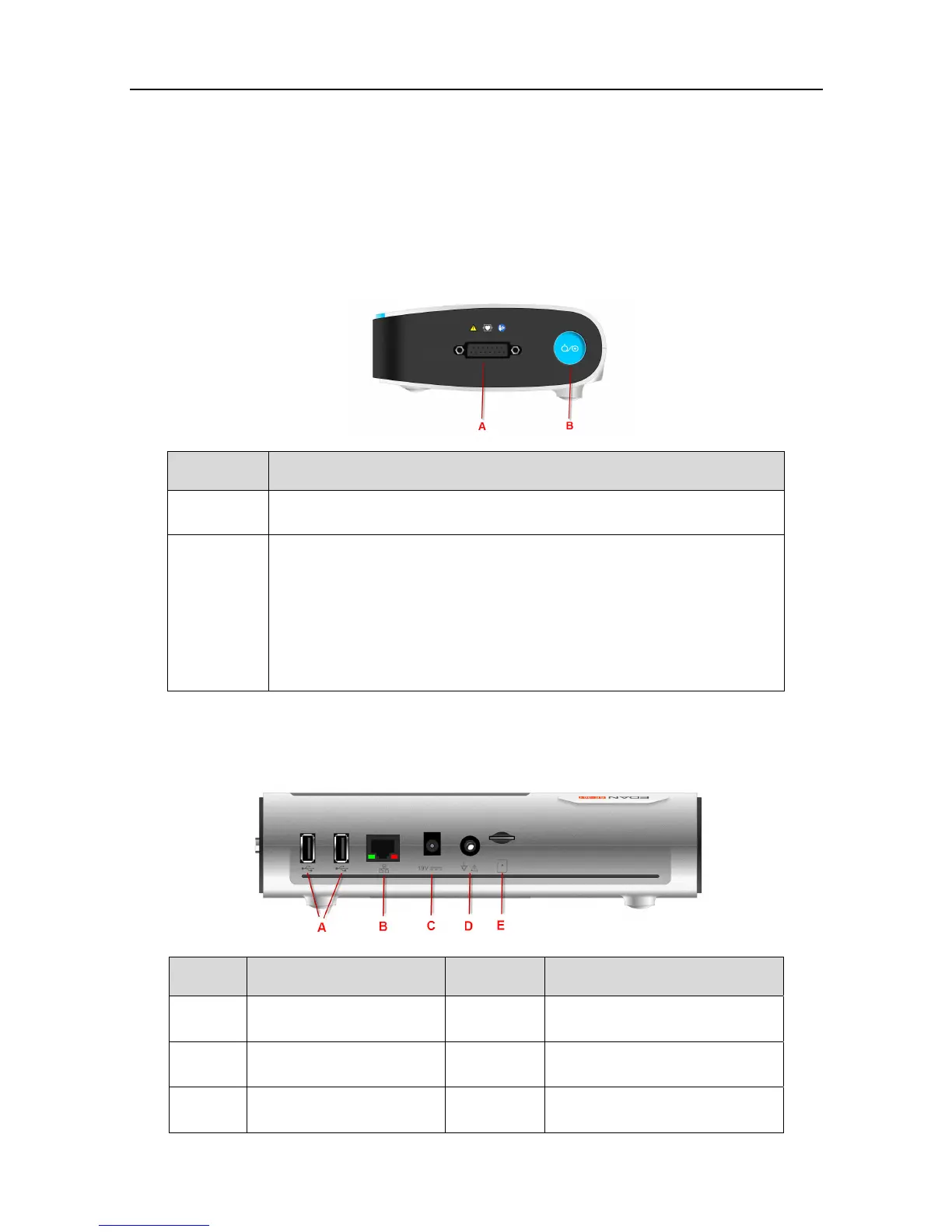

2.3 Right Panel
.
No. Description
A
Patient cable socket
B
Power key (Long press: switch on/off; short press: sleep mode)
Color when using the mains supply: Green
Color when using built-in battery: Blue
Color when recharging: Orange
2.4 Back Panel
No. Description No. Description
A
USB socket D Equipotential grounding
B
Net port
E
SD card slot
C
Power adapter port - -
