EDAN SE-301 - 4.3 Sample ECG Reports

SE-301 Series Electrocardiograph User Manual Sampling and Printing ECG
- 22 -
4.3 Sample ECG Reports
4.3.1 ECG Reports in the AUTO Mode

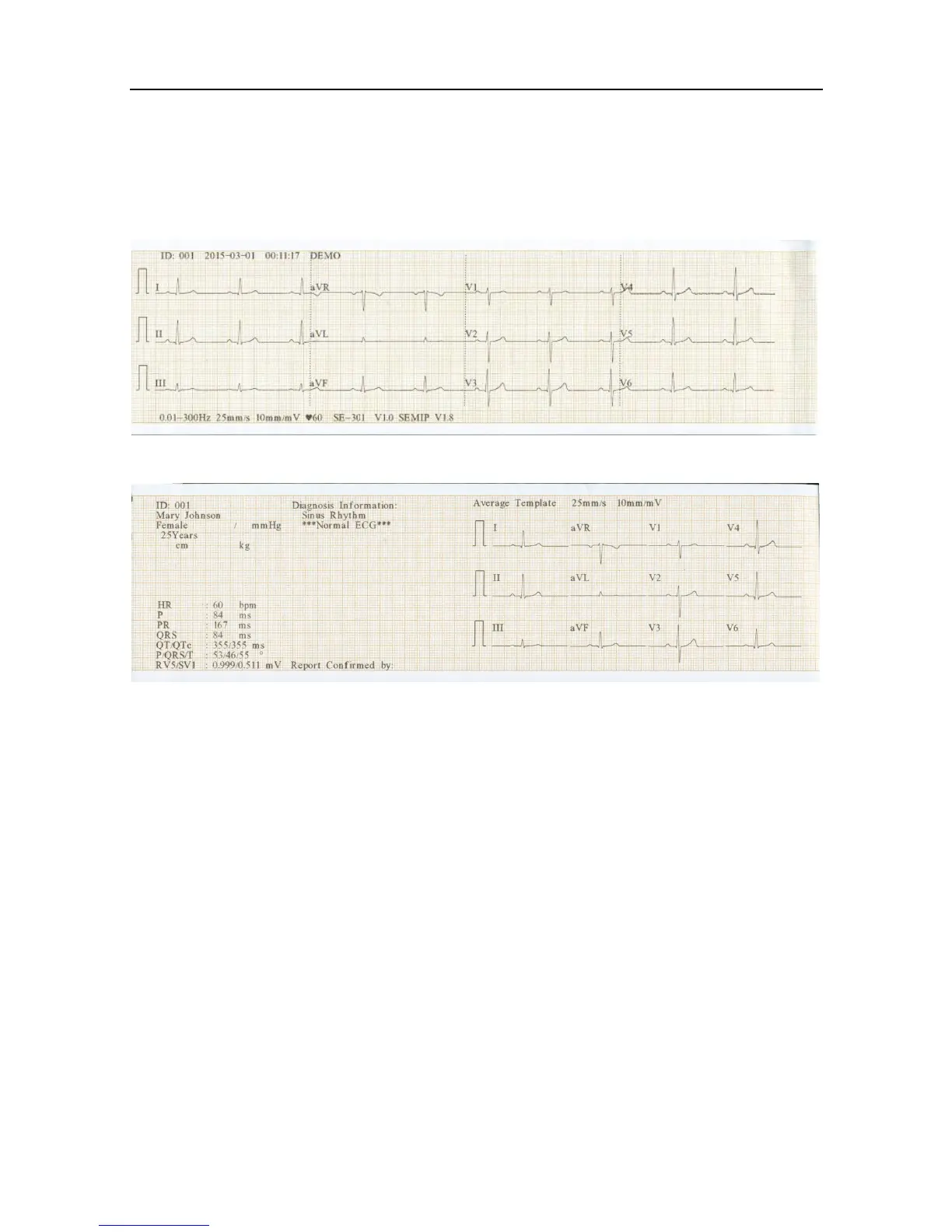

Figure 4-1 ECG Reports in the AUTO Mode (a)
Figure 4-2 ECG Reports in the AUTO Mode (b)
Figure 4-1 and Figure 4-2 show an ECG report in the AUTO mode. Template is selected, and
Record Style is set to 3×4.
The ECG report includes:
3×4 ECG waves
ID, Current Date and time
Patient Information:
ID, Name, Age, Gender, Height, Weight, BP, Race, Department,
Exam Room, Medication
Measure Information:
HR Heart Rate
P P wave duration: the average P-wave duration from several selected
dominant beats;
