Edelbrock 1711 - Exploded View and Parts Identification; Fuel Pump Exploded Diagram; Component Parts List

Upper Fuel Pump Body

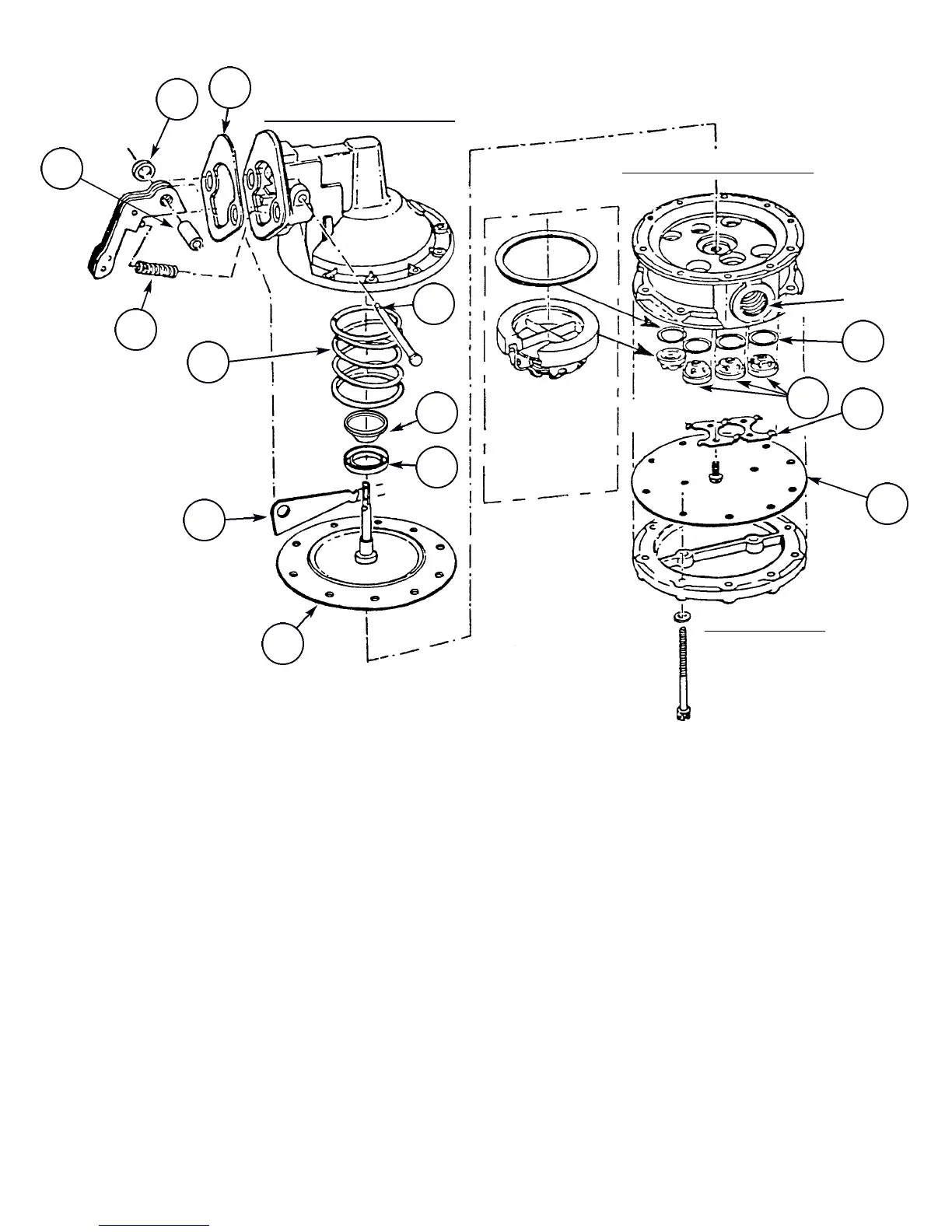

EXPLODED VIEW OF EDELBROCK FUEL PUMP
Lower Fuel Pump Body
In
Proper Valve
Installation
for “Outlet”
Side of Pump
Pulsator Cover
(1) Diaphragm and Pull Rod Assembly
(2) Pulsator Diaphragm
(3) Diaphragm Spring
(4) Mounting Gasket
(5) Valve
(6) Valve Gasket
(7) Valve Retainer
(8) Rocker Arm Pin
(9) Rocket Arm Lockwasher
(10) Rocker Arm Linkage
(11) Rocker Arm Spring
(12) Oil Seal
(13) Oil Seal Retainer
(14) Bushing
14
1
3
4
2
6
7
5
13
12
11
8
10
9
