Edge-Core ECS2100-28PP - Connect Network Cables; Extend PoE Budget

Quick Start Guide
– 6 –
7. Connect Network
Cables
Install SFP transceivers and connect network cables to port interfaces:
◆ For RJ-45 ports, use 100-ohm Category 5, 5e or better twisted-pair cable for
1000BASE-T connections, Category 5 or better for 100BASE-TX connections,
and Category 3 or better for 10BASE-T connections.
◆ First install SFP transceivers and then connect fiber optic cabling to the
transceiver ports. The following transceivers are supported:
■
1000BASE-SX (ET4201-SX)
■
1000BASE-LX (ET4201-LX)
■
1000BASE-ZX (ET4201-ZX)
As connections are made, check the port status LEDs to be sure the links are valid.
8. (Optional) Extend
PoE Budget to 740W
(ECS2100-28PP only)
If you have purchased an optional Extended Power Supply (EPS460W) and Chassis
(PS3000), follow the instructions below to connect it to the ECS2100-28PP and to
AC power.
Note: The ECS2100-28PP default PoE power budget is 370 W, by purchasing an
Extended Power Supply kit, the ECS2100-28PP can extend its PoE power budget up
to 740W.

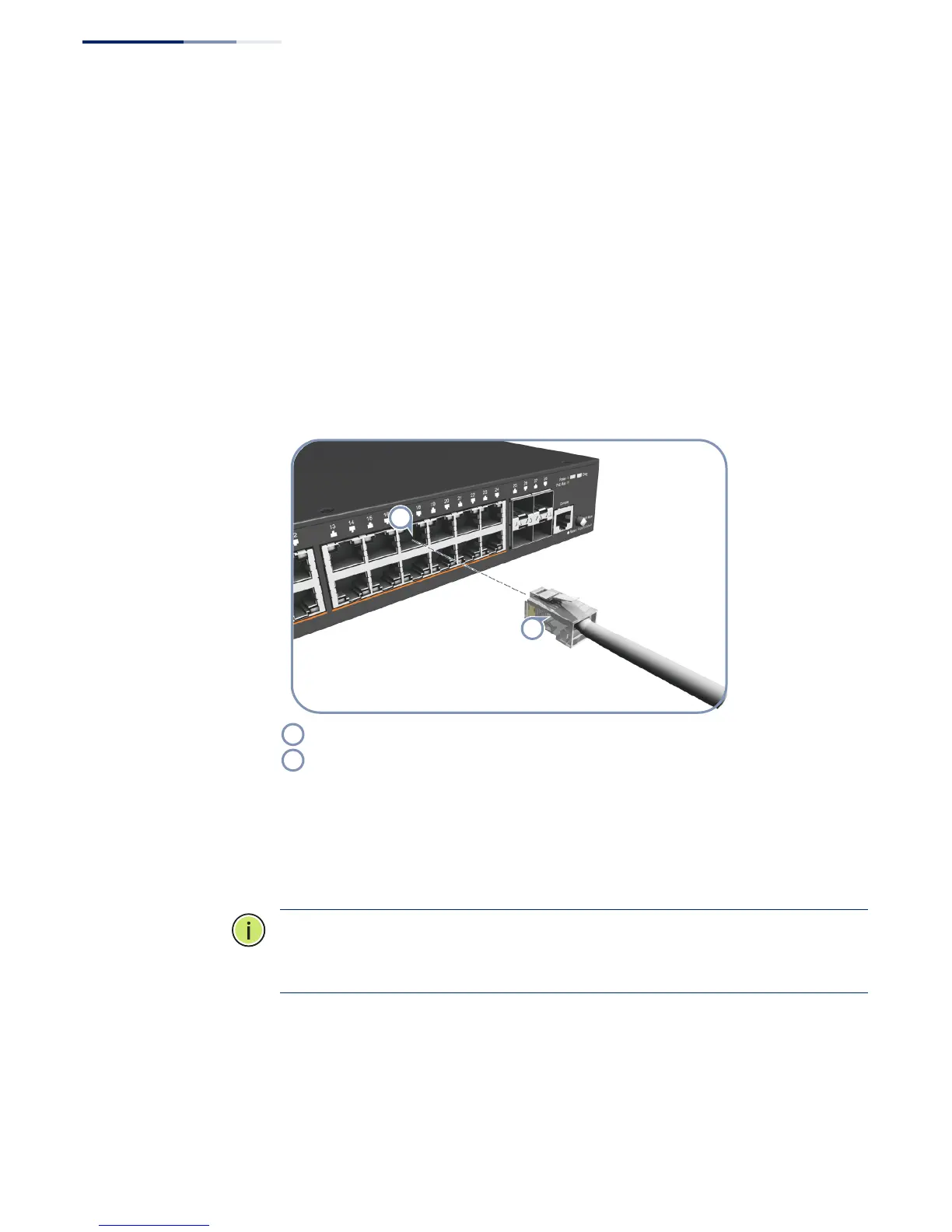

10/100/1000BASE-T RJ-45 Port.
Twisted-pair Cable with RJ-45 Plug.
1
2
1
2
