Description of Hardware
1-5
1

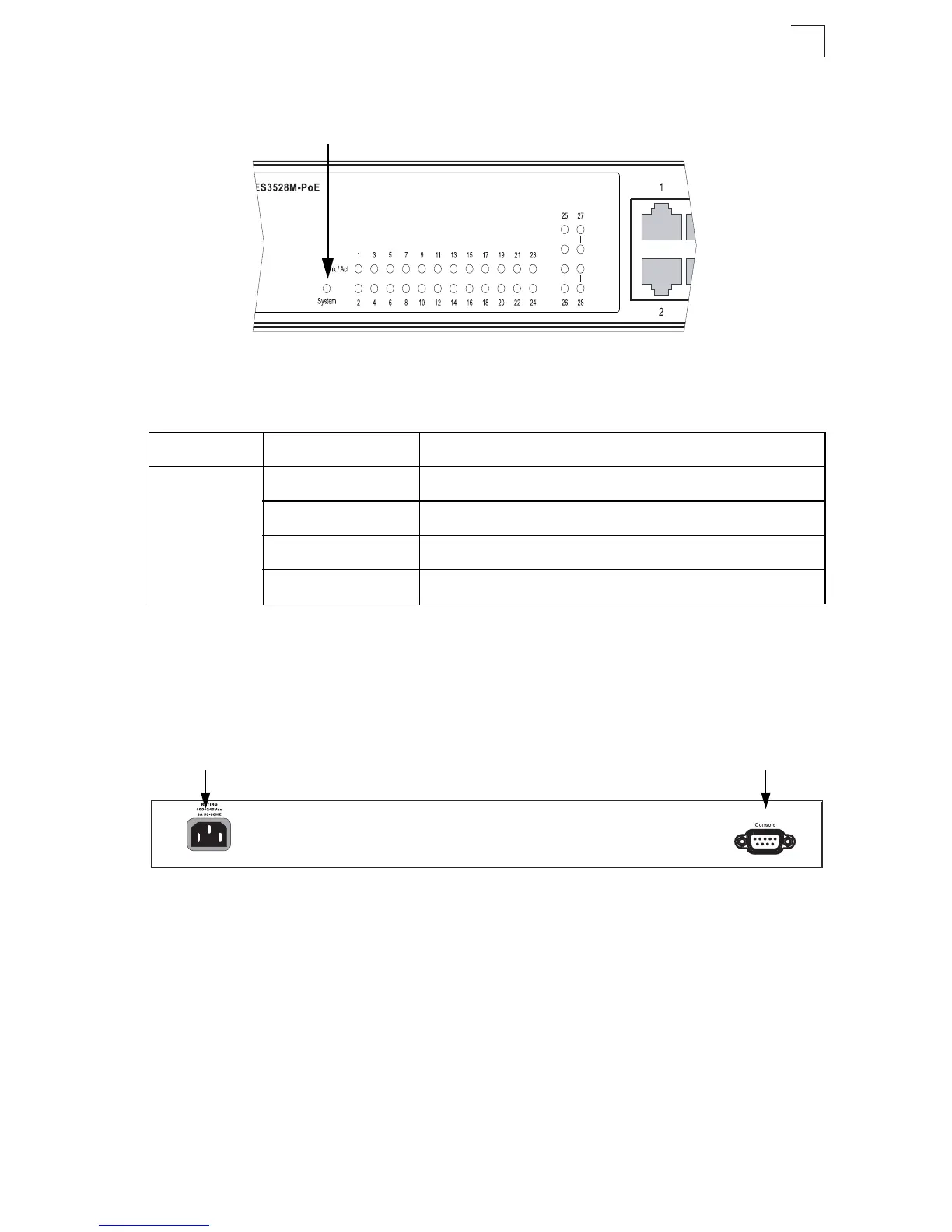

Figure 1-3 System Status LED
Power Supply Sockets
There is one standard power socket on the rear panel of each switch for the AC
power cord.
Figure 1-4 Power Supply Sockets
Table 1-3 System Status LED
LED Condition Status
System On Green Internal power is operating normally.
On Amber Power on Self Test (POST) is in progress.
Blinking Amber Power on Self Test (POST) has failed.
Off Power off.
System Status LED
Power Socket Console Port
